Overview
- Country/Region Bautzen, Germany
- Latitude, Longitude 51.192, 14.522
- Elevation 211.8 m
Station Information - BAUT00DEU
- Receiver - Firmware JAVAD TRE_3 DELTA - 4.1.06-221128

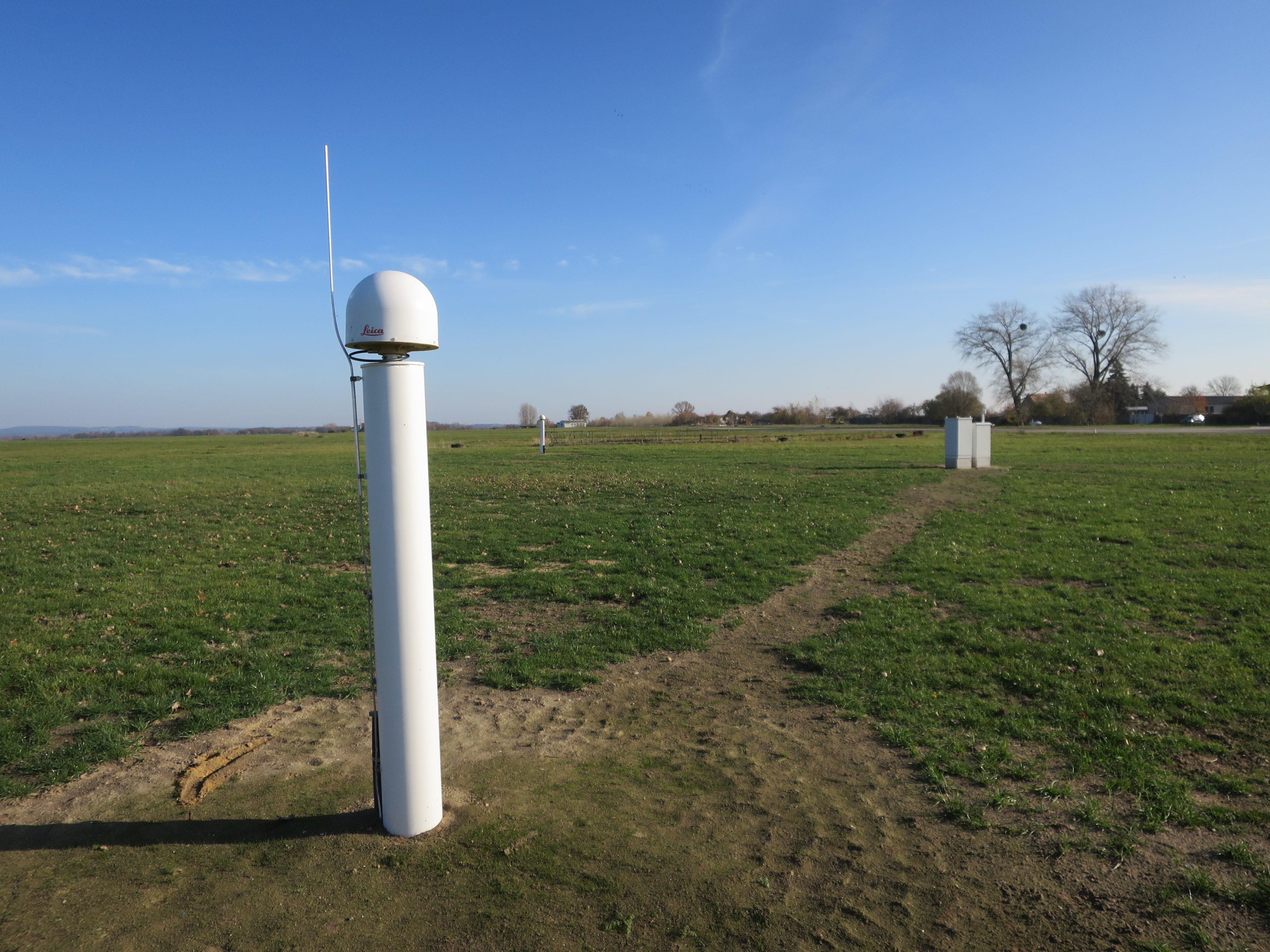

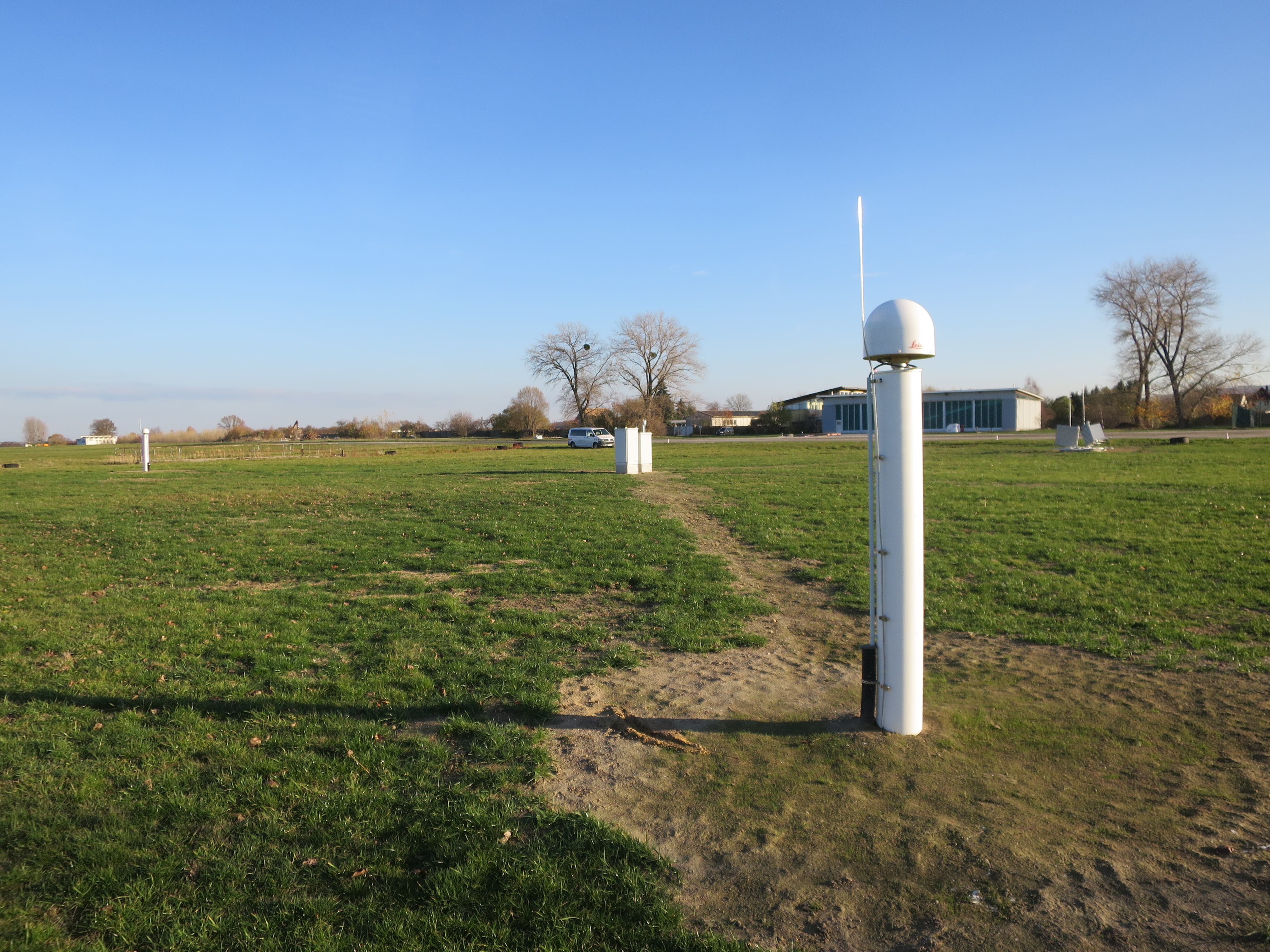

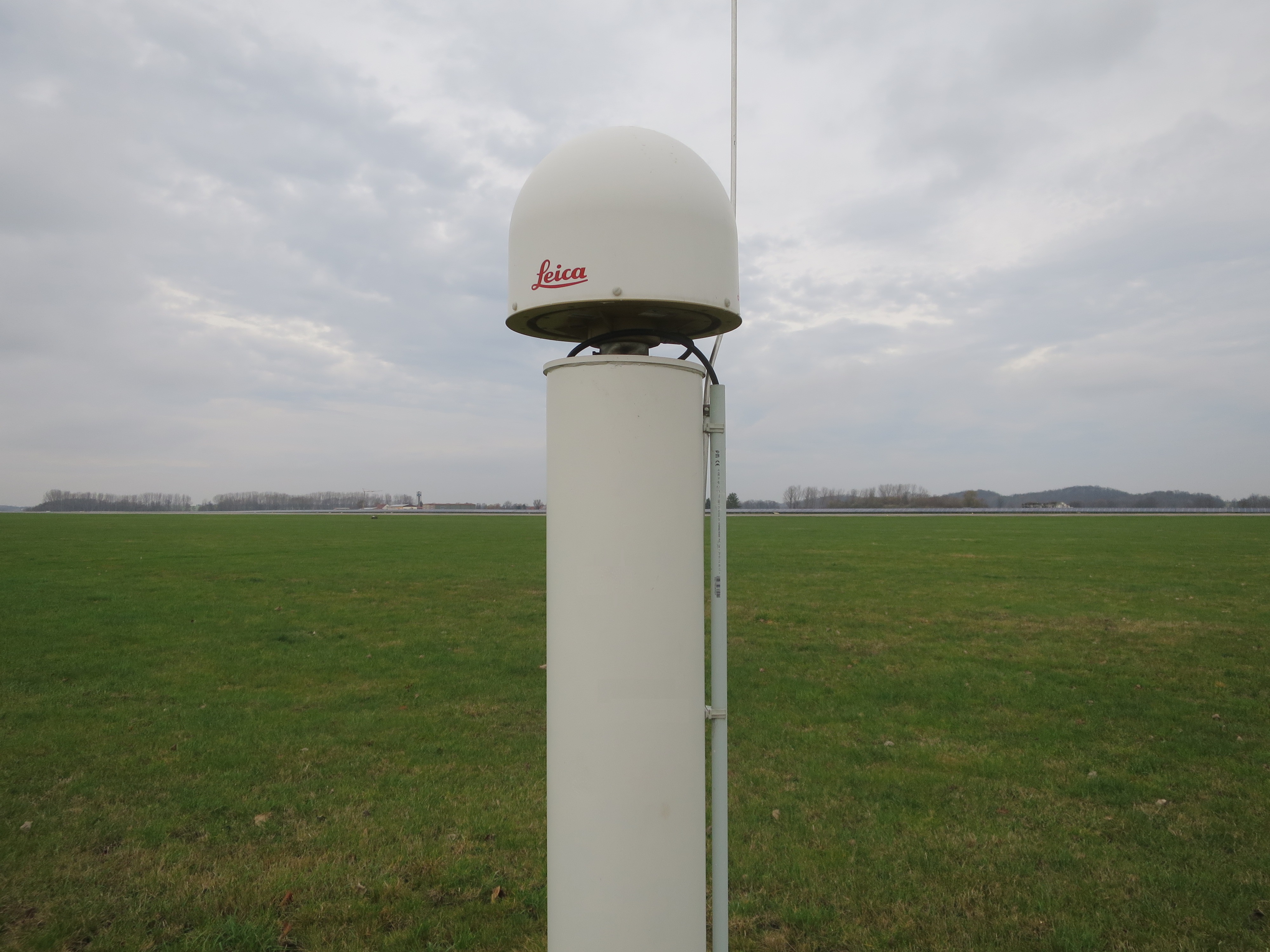

- Antenna - Radome LEIAR25.R3 - LEIT
- Antenna Calibration ROBOT
- Clock INTERNAL
- Last RINEX Data - Primary Data Center 2023-03-29 (v3) - BKG
- Constellation - RINEX GPS+GLO+GAL+BDS+SBAS
- Constellation - RealTime GPS+GLO+GAL
- DOMES Number 14102M001
- Nearby Tide Gauge N/A
- Station Log baut00deu_20230208.log
-
Analysis Center Usage
FinalRapidUltra
GRG 2023-01-07 MIT 2022-11-26
Receiver & Antenna Changes
- Receiver - Firmware
- JAVAD TRE_3 DELTA - 4.1.06-221128 2023-02-08
- JAVAD TRE_3 DELTA - 4.1.04-211206 2022-03-03
- JAVAD TRE_3 DELTA - 4.1.03-210713 2021-08-30
- JAVAD TRE_3 DELTA - 3.7.10 Oct,22,2020 2020-11-04
- JAVAD TRE_3 DELTA - 3.7.9 DEC,30,2019 2020-03-12
- JAVAD TRE_3 DELTA - 3.7.6 APR,08,2019 2019-05-17
- JAVAD TRE_3 DELTA - 3.7.5P1 JAN,23,2019 2019-01-29
- JAVAD TRE_3 DELTA - 3.7.5 DEC,06,2018 2019-01-10
- JAVAD TRE_3 DELTA - 3.7.3.p1 JUN,21,2018 2018-09-26
- Antenna - Radome
- LEIAR25.R3 - LEIT 2021-02-17
- LEIAR25.R4 - LEIT 2018-09-26
Email Advisories
- Operator.Gref at BAUT00DEU, BRMG00DEU, FFMJ00DEU, LEIJ00DEU, TIT200DEU, WARN00DEU: firmware update2023/02/08
- Operator.Gref at BAUT00DEU, BRMG00DEU, FFMJ00DEU, GOET00DEU, HUEG00DEU, LEIJ00DEU, TIT200DEU, WARN00DEU: delay in daily2022/09/19
- Operator.Gref at BAUT00DEU, BRMG00DEU, FFMJ00DEU, LEIJ00DEU, TIT200DEU, WARN00DEU2022/03/03
- David Maggert New IGS Station: BAUT00DEU 2021/12/07
The residual plots show the differences between weekly station position estimates (from the weekly IGS combined solutions) and the latest IGS cumulative solution piecewise linear [+post-seismic deformation] model. For more information on the IGS cumulative solution please see: https://webigs.ign.fr/tfcc/en/solution/cumulative
The position time series are extracted from the daily IGS SINEX solutions.
