Overview

  • Country/Region Borowiec, Poland
  • Latitude, Longitude 52.277, 17.073
  • Elevation 124.9 m

Station Information - BOR100POL

  • Receiver - Firmware TRIMBLE NETR9 - 5.45
  • Antenna - Radome TRM59800.00 - NONE
  • Antenna Calibration ROBOT
  • Clock EXTERNAL H-MASER
  • Last RINEX Data - Primary Data Center 2023-03-29 (v3) - BKG
  • Constellation - RINEX GPS+GLO+GAL+BDS+QZSS+SBAS
  • Constellation - RealTime
  • DOMES Number 12205M002
  • Nearby Tide Gauge N/A
  • Station Log bor100pol_20220425.log
  • Analysis Center Usage

    Final
    Rapid
    Ultra
    COD2023-03-302023-03-23
    EMR2023-03-30
    GFZ2023-01-212023-01-21
    JPL2022-05-14
    MIT2022-11-26
    NGS2023-03-162023-03-30
    SIO2023-03-16
    USN2022-03-26
    WHU2022-03-12

Receiver & Antenna Changes

  • Receiver - Firmware
  • TRIMBLE NETR9 - 5.45 2020-09-18
  • TRIMBLE NETR9 - 5.37 2018-12-28
  • TRIMBLE NETR9 - 5.20 2017-02-21
  • TRIMBLE NETR9 - 5.14 2016-10-05
  • TRIMBLE NETRS - 1.2-0 Apr 26 2007 2008-03-06
  • TRIMBLE NETRS - 1.1-3 2007-07-08
  • ROGUE SNR-8000 - 3.2.32.11 2002-03-06
  • ROGUE SNR-8000 - 3.2.32.9 1999-08-27
  • ROGUE SNR-8000 - 2.8 1994-01-10
  • Antenna - Radome

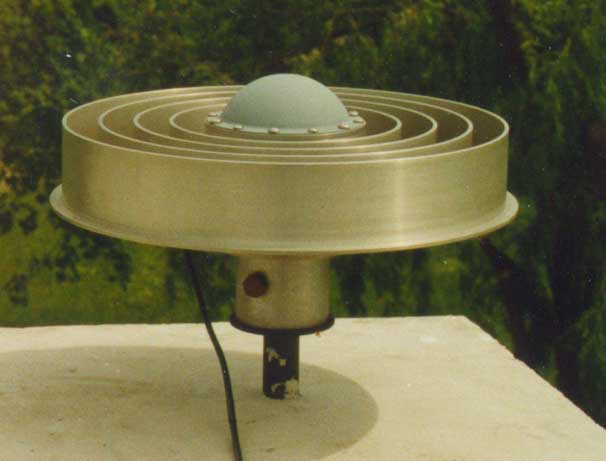

  • TRM59800.00 - NONE 2016-10-05
  • AOAD/M_T - NONE 1999-05-31
  • AOAD/M_T - NONE 1994-01-10

Email Advisories

The residual plots show the differences between weekly station position estimates (from the weekly IGS combined solutions) and the latest IGS cumulative solution piecewise linear [+post-seismic deformation] model. For more information on the IGS cumulative solution please see: https://webigs.ign.fr/tfcc/en/solution/cumulative

The position time series are extracted from the daily IGS SINEX solutions.
