Overview

  • Country/Region Delft, Netherlands (the)
  • Latitude, Longitude 51.986, 4.387
  • Elevation 75.8 m

Station Information - DLF100NLD

  • Receiver - Firmware TRIMBLE NETR9 - 5.45

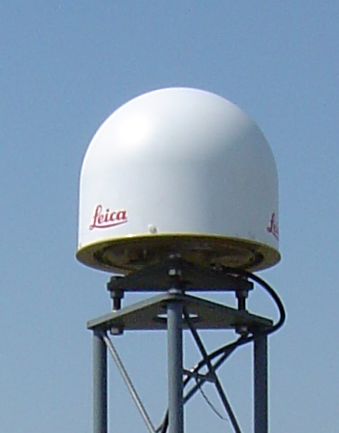

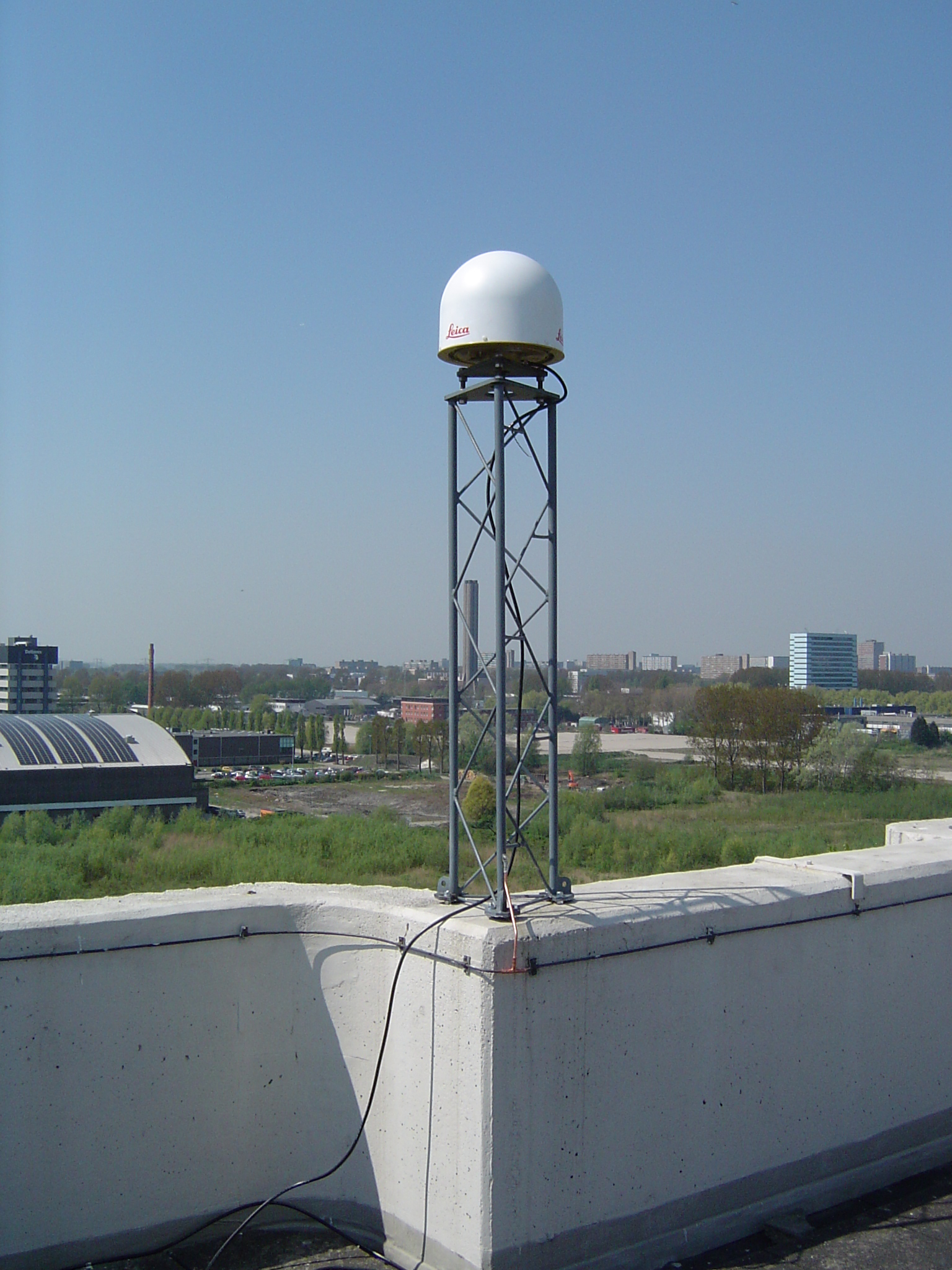

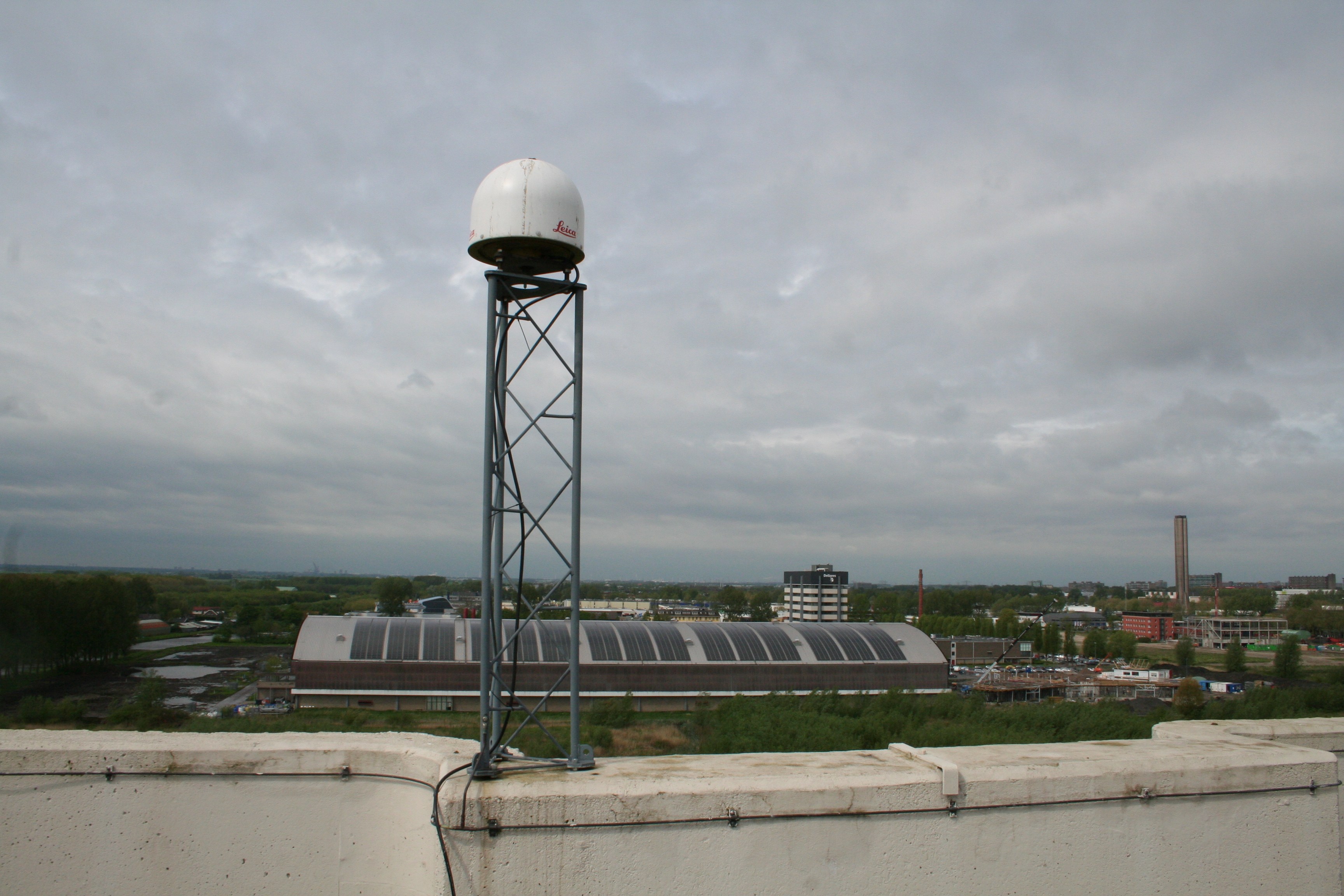

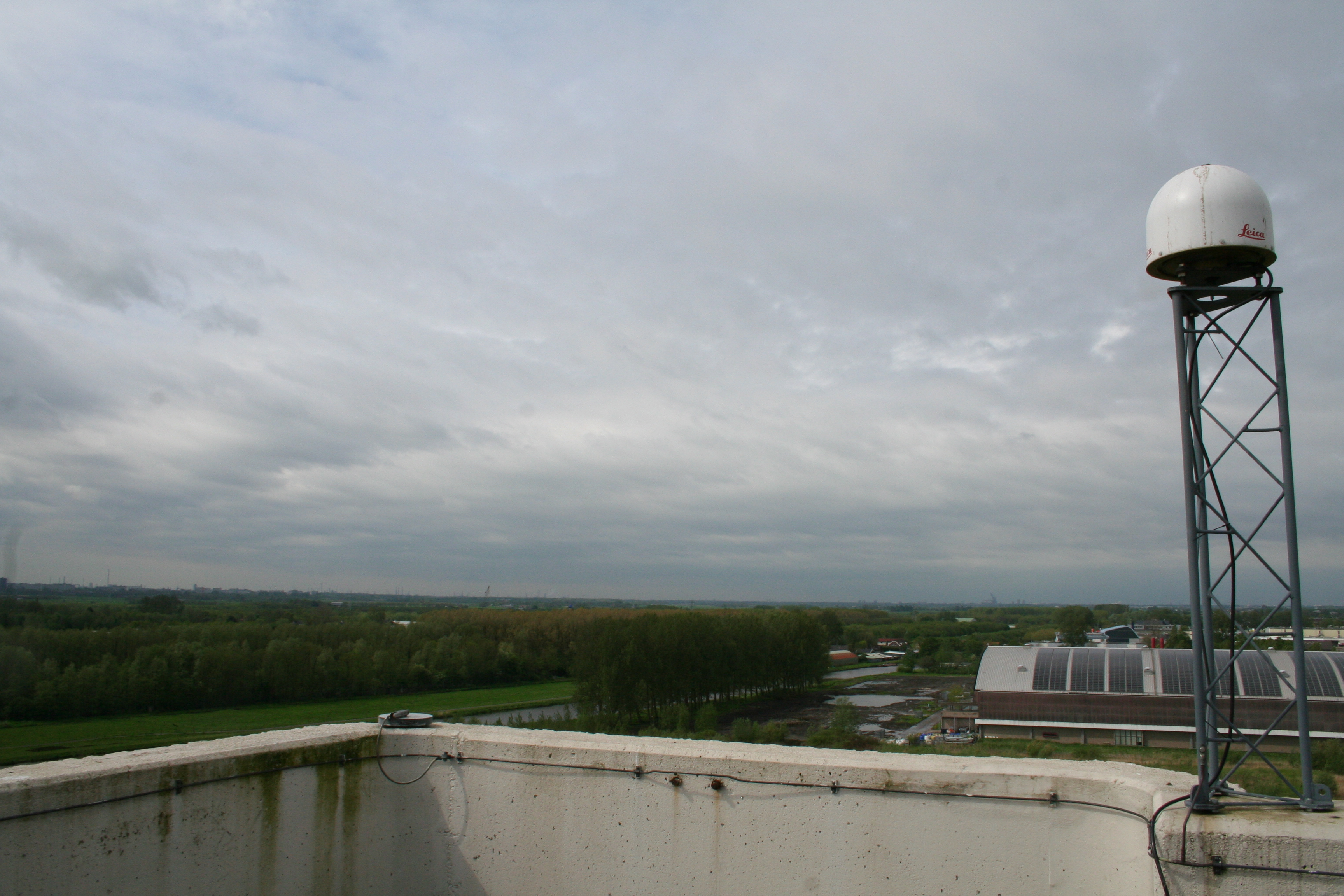

  • Antenna - Radome LEIAR25.R3 - LEIT
  • Antenna Calibration ROBOT
  • Clock EXTERNAL CESIUM
  • Last RINEX Data - Primary Data Center 2023-03-29 (v3) - DUT
  • Constellation - RINEX GPS+GLO+GAL+BDS+QZSS+SBAS
  • Constellation - RealTime GPS+GLO+QZSS+BDS+GAL
  • DOMES Number 13502M009
  • Nearby Tide Gauge MAASLUIS - 12142m
  • Station Log dlf100nld_20201220.log
  • Analysis Center Usage

    Final
    Rapid
    Ultra
    COD2022-11-26
    GRG2023-03-132023-03-13
    JPL2022-11-05
    NGS2023-03-162023-03-30
    SIO2022-10-08

Receiver & Antenna Changes

  • Receiver - Firmware
  • TRIMBLE NETR9 - 5.45 2020-05-16
  • TRIMBLE NETR9 - 5.43 2019-10-26
  • TRIMBLE NETR9 - 5.37 2018-10-29
  • TRIMBLE NETR9 - 5.22 2017-05-28
  • TRIMBLE NETR9 - 5.15 2016-12-21
  • TRIMBLE NETR9 - 5.14 2016-07-20
  • TRIMBLE NETR9 - 5.03 2015-07-13
  • TRIMBLE NETR9 - 5.01 2015-06-17
  • TRIMBLE NETR9 - 4.81 2013-08-12
  • TRIMBLE NETR9 - 4.80 2013-05-09
  • TRIMBLE NETR9 - 4.70 2013-02-18
  • TRIMBLE NETR9 - 4.60 2012-05-08
  • TRIMBLE NETR9 - 4.46 2012-05-03
  • TRIMBLE NETR9 - 4.43 2012-02-01
  • TRIMBLE NETR9 - 4.42 2011-06-22
  • TRIMBLE NETR9 - 4.22 2011-04-15
  • Antenna - Radome
  • LEIAR25.R3 - LEIT 2011-04-15

Email Advisories

The residual plots show the differences between weekly station position estimates (from the weekly IGS combined solutions) and the latest IGS cumulative solution piecewise linear [+post-seismic deformation] model. For more information on the IGS cumulative solution please see: https://webigs.ign.fr/tfcc/en/solution/cumulative

The position time series are extracted from the daily IGS SINEX solutions.
