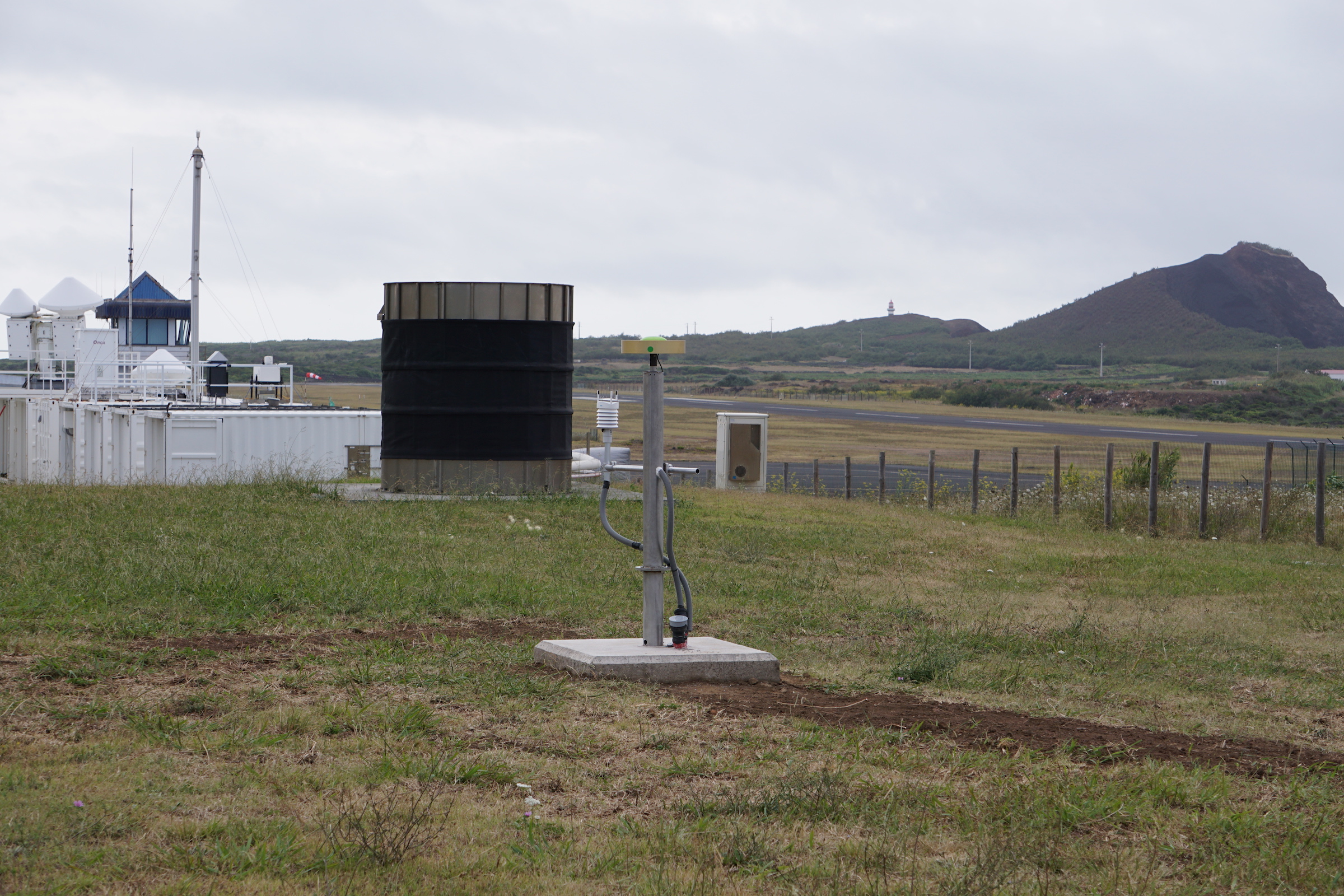

Overview

  • Country/Region Santa Cruz da Graciosa, Portugal
  • Latitude, Longitude 39.091, -28.026
  • Elevation 91.6 m

Station Information - ENAO00PRT

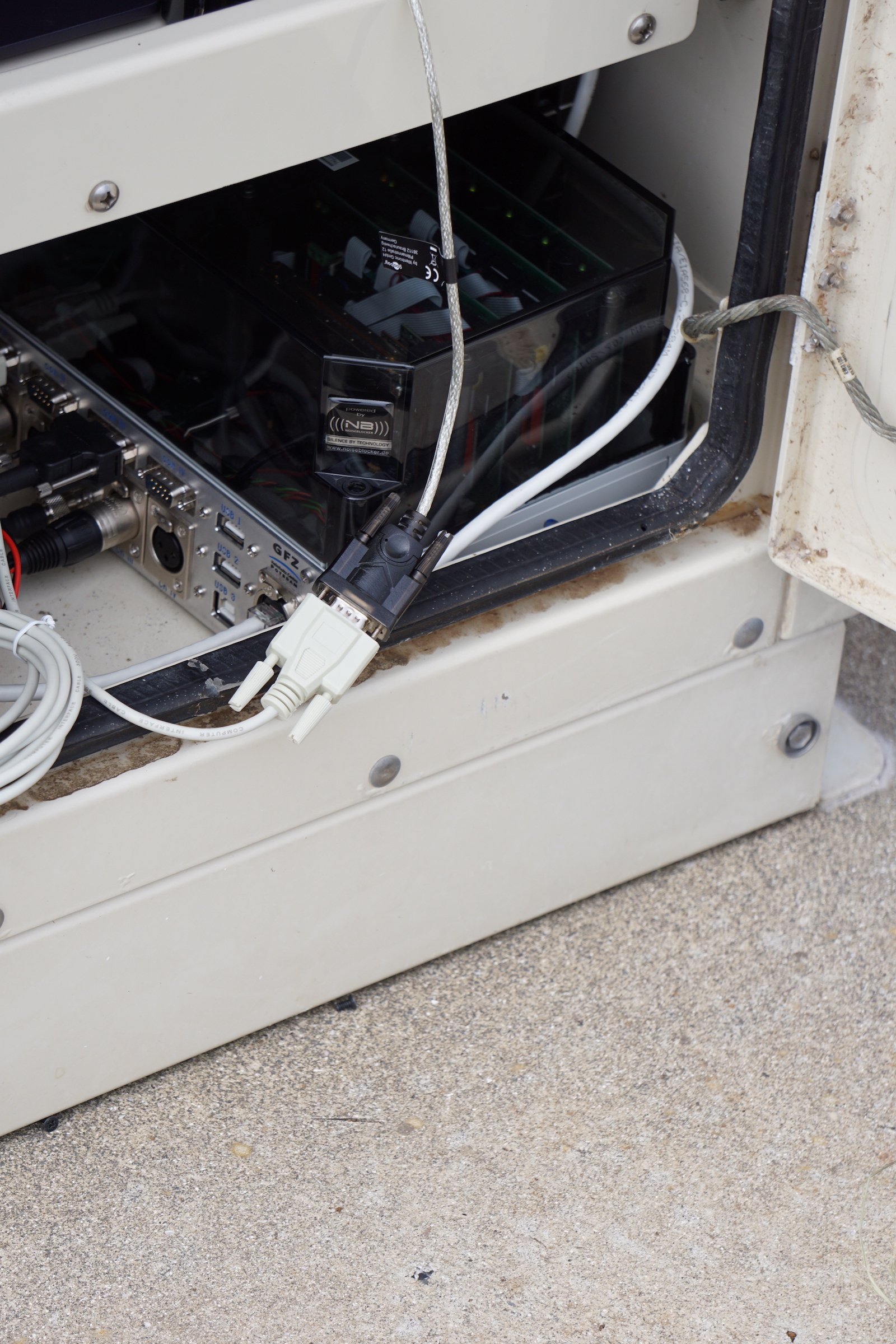

  • Receiver - Firmware JAVAD TRE_3 - 4.2.01-220630
  • Antenna - Radome JAVRINGANT_G5T - NONE
  • Antenna Calibration ROBOT
  • Clock INTERNAL
  • Last RINEX Data - Primary Data Center 2023-03-29 (v3) - CDDIS
  • Constellation - RINEX GPS+GLO+GAL+BDS+SBAS
  • Constellation - RealTime GPS+GLO+GAL
  • DOMES Number 31902M005
  • Nearby Tide Gauge N/A
  • Station Log enao00prt_20230203.log
  • Analysis Center Usage

    Final
    Rapid
    Ultra
    EMR2023-02-11
    GFZ2023-03-232023-03-30
    GRG2023-03-062023-03-13
    JPL2022-11-19

Receiver & Antenna Changes

  • Receiver - Firmware
  • JAVAD TRE_3 - 4.2.01-220630 2023-02-03
  • JAVAD TRE_3 - 4.1.01-210527 2021-06-14
  • JAVAD TRE_3 - 3.7.10 2021-04-19
  • JAVAD TRE_3 - 3.7.10 2020-11-10
  • JAVAD TRE_3 - 3.7.9 2020-08-03
  • JAVAD TRE_3 - 3.7.9 2020-05-28
  • JAVAD TRE_3 - 3.7.9 2020-02-27
  • JAVAD TRE_3 - 3.7.6 2019-12-20
  • JAVAD TRE_3 - 3.7.6 2019-07-23
  • Antenna - Radome
  • JAVRINGANT_G5T - NONE 2019-07-23

Email Advisories

The residual plots show the differences between weekly station position estimates (from the weekly IGS combined solutions) and the latest IGS cumulative solution piecewise linear [+post-seismic deformation] model. For more information on the IGS cumulative solution please see: https://webigs.ign.fr/tfcc/en/solution/cumulative

The position time series are extracted from the daily IGS SINEX solutions.
