Overview

  • Receiver - Firmware SEPT POLARX5 - 5.4.0
  • Receiver SN 3023088

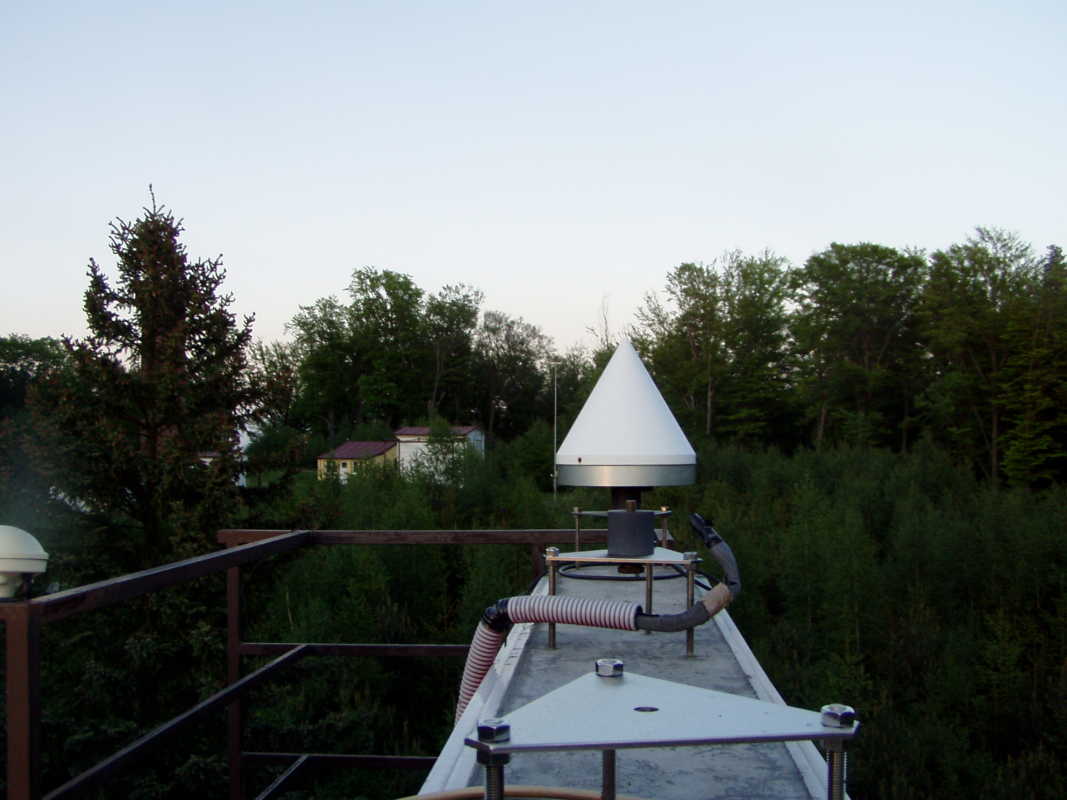

  • Antenna - Radome SEPCHOKE_B3E6 - SPKE
  • Calibration ROBOT
  • Clock EXTERNAL CESIUM
  • Last Data Available 2021-09-15 (v3)
  • DOMES Number 11502M006
  • Constellation GPS+GLO+GAL+BDS+QZSS+IRNSS+SBAS
  • Data Center BKG
  • Nearby Tide Gauge N/A
  • Station Log gop600cze_20210901.log
  • Location Ondrejov, Czechia
  • Latitude, Longitude 49.914, 14.786
  • Elevation 592.6 m

Email Advisories

Receiver & Antenna Changes

  • Receiver - Firmware
  • SEPT POLARX5 - 5.4.0 2021-02-08
  • SEPT POLARX5 - 5.3.2 2020-02-19
  • SEPT POLARX5 - 5.3.0 2019-10-02
  • SEPT POLARX5 - 5.2.0 2018-07-30

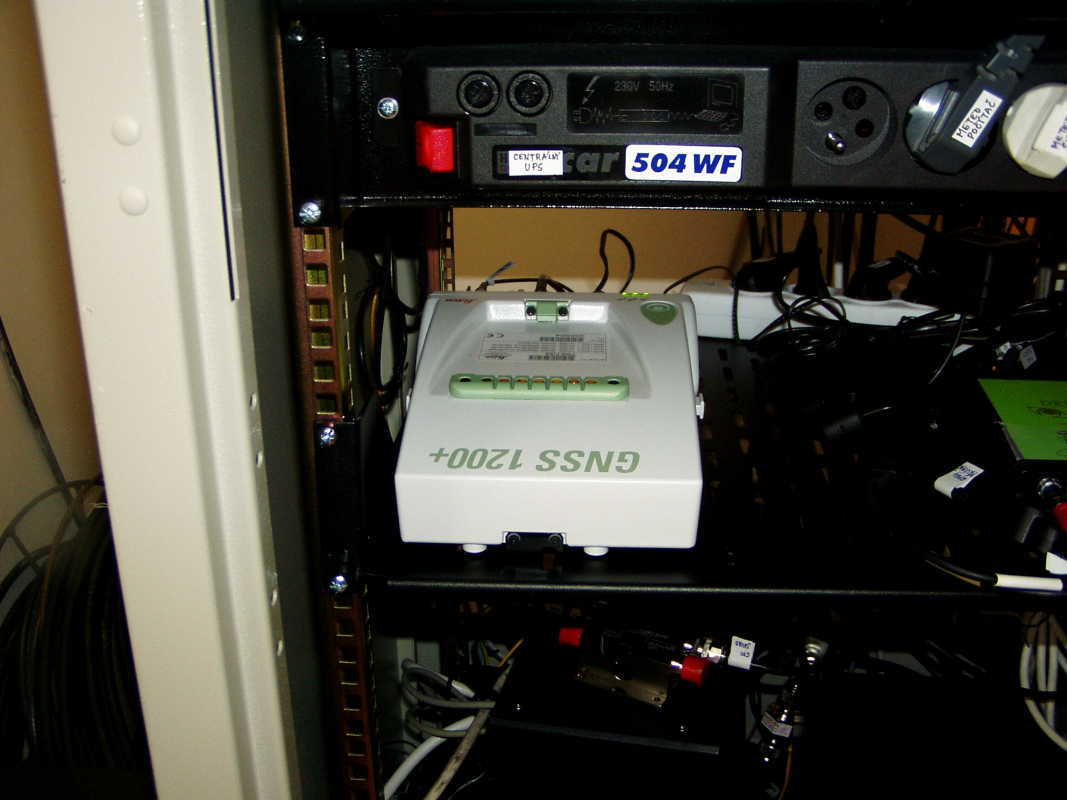

  • LEICA GRX1200+GNSS - 9.20/6.405 2017-01-03
  • LEICA GRX1200+GNSS - 9.20/6.404 2015-07-28
  • LEICA GRX1200+GNSS - 8.71/6.112 2013-06-24
  • LEICA GRX1200+GNSS - 8.51/6.111 2012-08-07
  • LEICA GRX1200+GNSS - 8.51/6.110 2012-02-27
  • LEICA GRX1200+GNSS - 8.50/6.110 2011-12-21
  • Antenna - Radome
  • TRM57971.00 - NONE 2012-01-24
  • TRM55971.00 - NONE 2009-10-15
  • AERAT2775_43 - SPKE 2008-07-15

Daily RINEX2 Observations

RINEX2 Cycle Slips

RINEX2 RMS Multipath

RINEX2 Latency

Residuals

The residual plots show the differences between weekly station position estimates (from the weekly IGS combined solutions) and the latest IGS cumulative solution piecewise linear [+post-seismic deformation] model. For more information on the IGS cumulative solution please see: https://webigs.ign.fr/tfcc/en/solution/cumulative
