Overview

  • Receiver - Firmware LEICA GRX1200GGPRO - 7.80/3.055
  • Receiver SN 355316
  • Antenna - Radome LEIAT504GG - NONE
  • Calibration ROBOT
  • Clock INTERNAL
  • Last Data Available 2021-09-15 (v2)
  • DOMES Number 13212M010
  • Constellation GPS+GLO
  • Data Center BKG
  • Nearby Tide Gauge N/A
  • Station Log hert00gbr_20150921.log
  • Location Hailsham, United Kingdom
  • Latitude, Longitude 50.867, 0.334
  • Elevation 83.3 m

Email Advisories

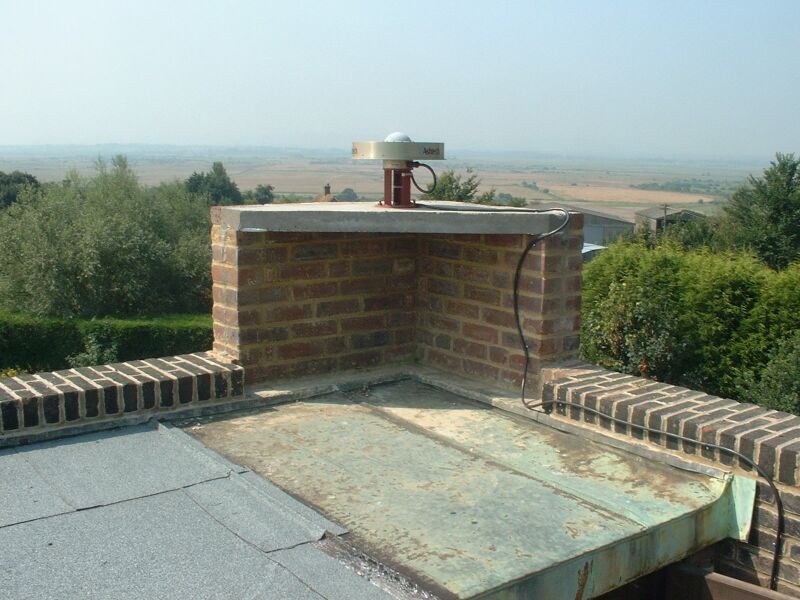

Photos

Receiver & Antenna Changes

  • Receiver - Firmware
  • LEICA GRX1200GGPRO - 7.80/3.055 2015-09-18
  • LEICA GRX1200GGPRO - 7.80/3.055 2014-07-21
  • LEICA GRX1200GGPRO - 7.80/3.019 2010-05-04
  • LEICA GRX1200GGPRO - 7.80/3.018 2010-03-30
  • LEICA GRX1200GGPRO - 7.50/3.017 2009-06-09
  • LEICA GRX1200GGPRO - 7.50/3.015 2009-05-19
  • LEICA GRX1200GGPRO - 6.02/3.015 2008-09-16
  • LEICA GRX1200GGPRO - 5.62/3.014 2008-01-25
  • LEICA GRX1200GGPRO - 5.50/3.014 2007-12-04
  • ASHTECH Z18 - 0065 ZT16 2003-03-12
  • Antenna - Radome
  • TRM57971.00 - NONE 2012-01-24
  • TRM55971.00 - NONE 2009-10-15
  • AERAT2775_43 - SPKE 2008-07-15

Daily RINEX2 Observations

RINEX2 Cycle Slips

RINEX2 RMS Multipath

RINEX2 Latency

Residuals

The residual plots show the differences between weekly station position estimates (from the weekly IGS combined solutions) and the latest IGS cumulative solution piecewise linear [+post-seismic deformation] model. For more information on the IGS cumulative solution please see: https://webigs.ign.fr/tfcc/en/solution/cumulative
