Overview

  • Country/Region Roque de los Muchachos, Spain
  • Latitude, Longitude 28.764, -17.894
  • Elevation 2207.0 m

Station Information - LPAL00ESP

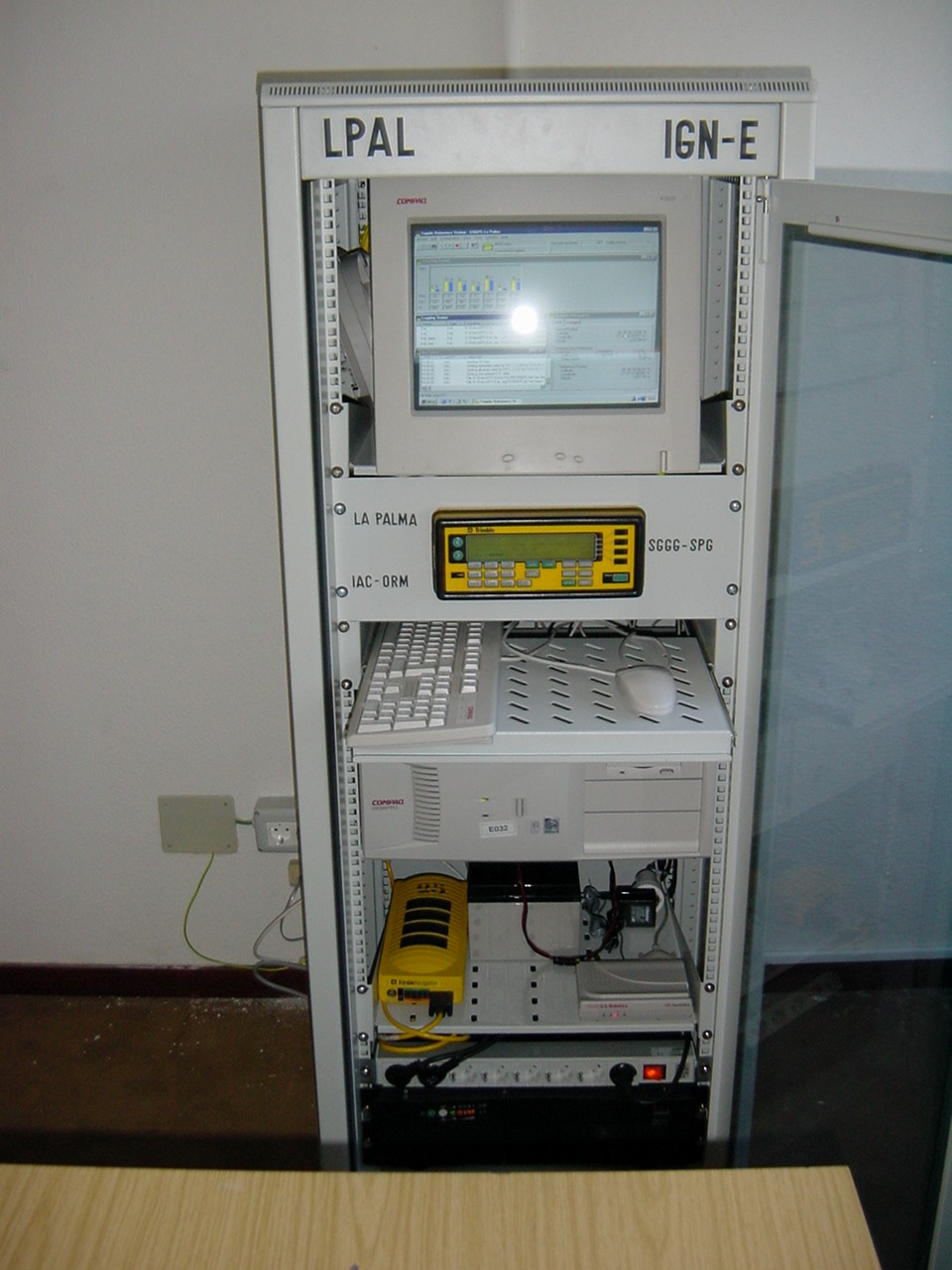

  • Receiver - Firmware LEICA GR50 - 4.61/7.811
  • Antenna - Radome LEIAR20 - LEIM
  • Antenna Calibration ROBOT
  • Clock INTERNAL
  • Last RINEX Data - Primary Data Center 2022-12-02 (v3) - BKG
  • Constellation - RINEX GPS+GLO+GAL+BDS
  • Constellation - RealTime GPS+GLO+GAL
  • DOMES Number 81701M001
  • Nearby Tide Gauge SANTA CRUZ DE LA PALMA B - 15589m
  • Station Log lpal00esp_20221123.log
  • Analysis Center Usage

    Final
    Rapid
    Ultra
    COD2022-11-262022-12-03
    EMR2022-11-12
    ESA2022-08-13
    GFZ2022-10-01
    JPL2022-11-26
    MIT2022-11-26
    NGS2022-11-19
    WHU2022-03-12

Receiver & Antenna Changes

  • Receiver - Firmware
  • LEICA GR50 - 4.61/7.811 2022-11-23
  • LEICA GR50 - 4.51/7.710 2022-04-05
  • LEICA GRX1200GGPRO - 8.71/3.822 2013-05-14
  • LEICA GRX1200GGPRO - 8.51/3.019 2012-03-21
  • LEICA GRX1200GGPRO - 8.50/3.019 2012-01-25
  • LEICA GRX1200GGPRO - 8.20/3.019 2011-05-25
  • LEICA GRX1200GGPRO - 8.00/3.019 2010-07-22
  • LEICA GRX1200GGPRO - 8.00/3.019 2010-06-30
  • LEICA GRX1200GGPRO - 7.80/3.019 2010-06-14
  • LEICA GRX1200GGPRO - 7.80 2010-02-15
  • LEICA GRX1200GGPRO - 7.02 2009-04-23
  • LEICA GRX1200GGPRO - 6.02 2009-01-19
  • LEICA GRX1200GGPRO - 5.62 2008-07-09
  • TRIMBLE 4000SSI - NP 7.19 / SP 3.04 2001-05-17
  • Antenna - Radome
  • LEIAR20 - LEIM 2022-04-05
  • LEIAT504GG - NONE 2008-07-09
  • TRM29659.00 - TCWD 2001-05-17

Email Advisories

The residual plots show the differences between weekly station position estimates (from the weekly IGS combined solutions) and the latest IGS cumulative solution piecewise linear [+post-seismic deformation] model. For more information on the IGS cumulative solution please see: https://webigs.ign.fr/tfcc/en/solution/cumulative

The position time series are extracted from the daily IGS SINEX solutions.
