Overview

  • Receiver - Firmware LEICA GR30 - 4.20/7.300
  • Receiver SN 1705344
  • Antenna - Radome LEIAR20 - NONE
  • Calibration ROBOT
  • Clock INTERNAL
  • Last Data Available 2021-10-25 (v3)
  • DOMES Number 12734M009
  • Constellation GPS+GLO+GAL+BDS+SBAS
  • Data Center CDDIS
  • Nearby Tide Gauge N/A
  • Station Log mat100ita_20200715.log
  • Location MATERA, Italy
  • Latitude, Longitude 40.649, 16.705
  • Elevation 534.5 m

Email Advisories

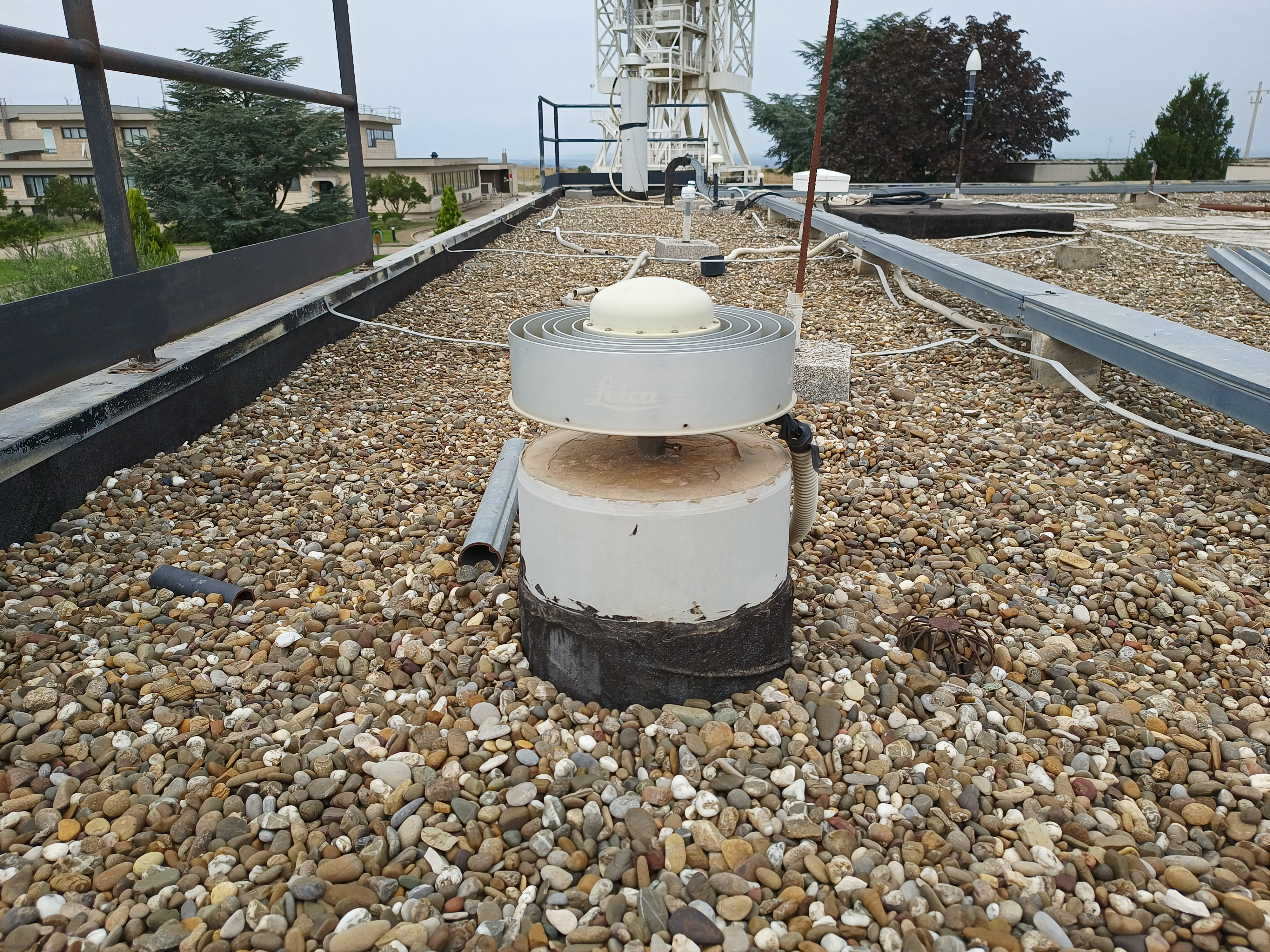

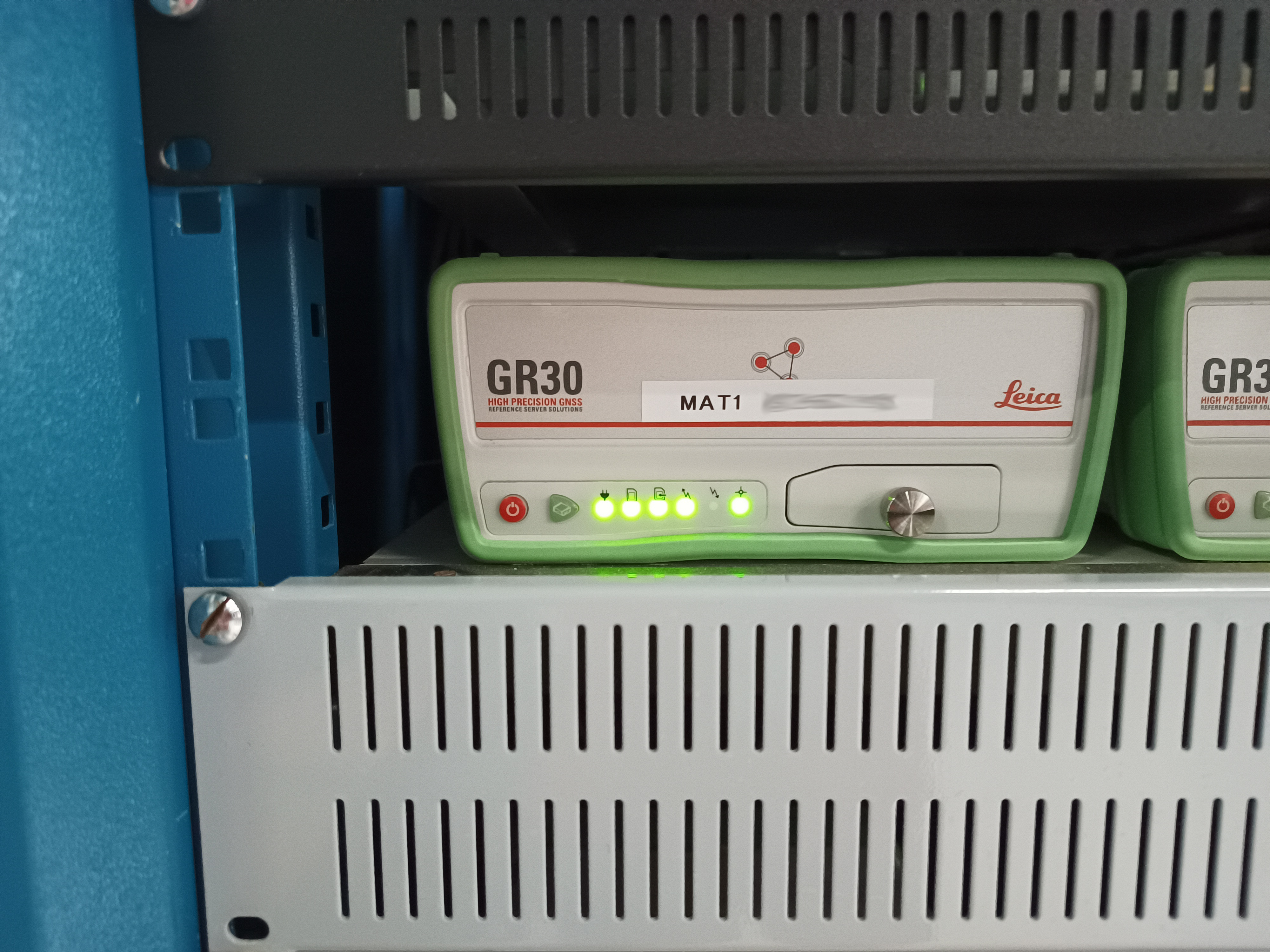

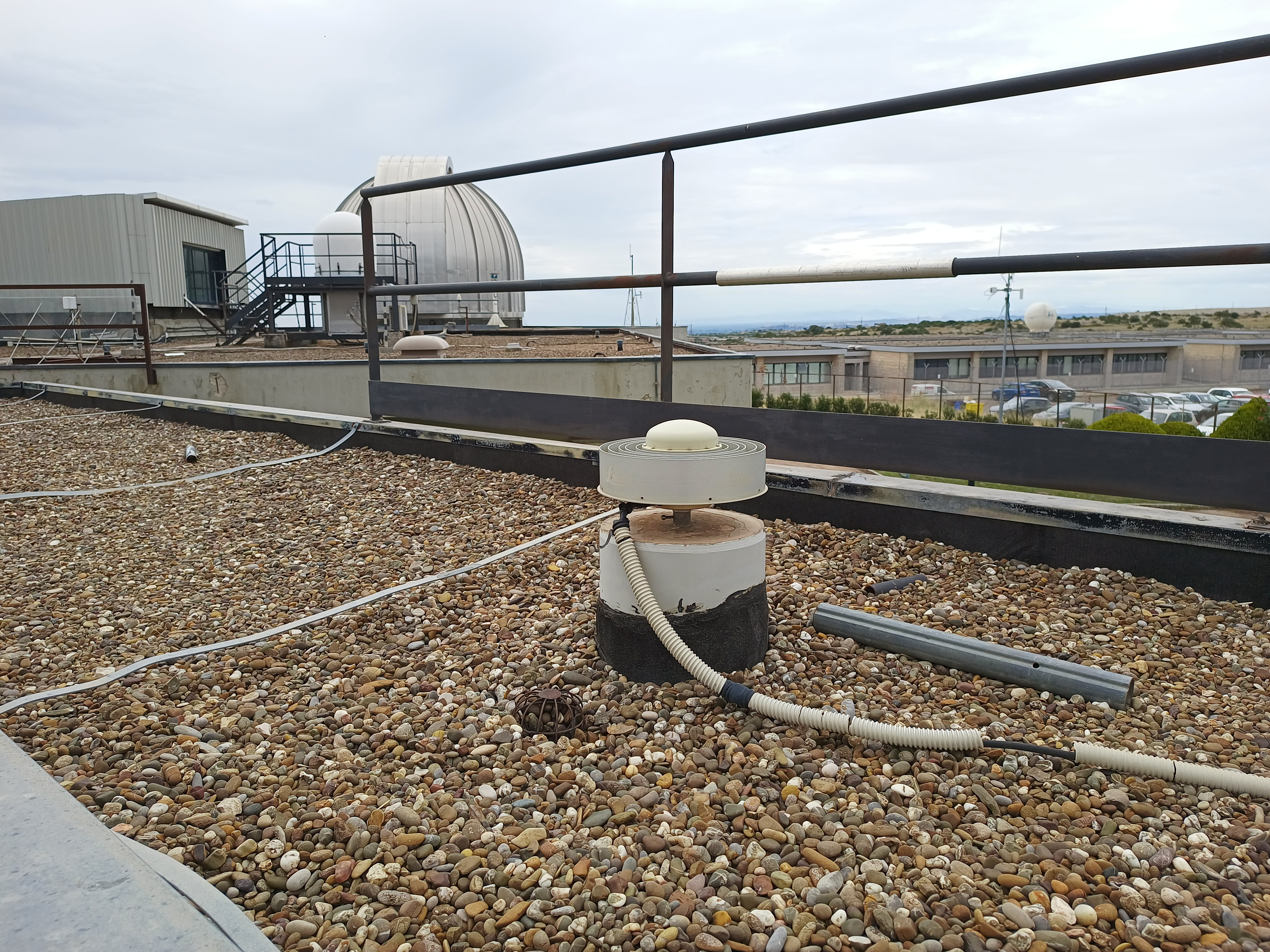

Photos

Receiver & Antenna Changes

  • Receiver - Firmware
  • LEICA GR30 - 4.20/7.300 2018-07-25
  • LEICA GR30 - 4.11/7.102 2017-07-05
  • TRIMBLE 4000SSI - Nav 7.29 Sig 3.07 2015-08-03
  • TRIMBLE 4000SSI - Nav 7.29 Sig 3.07 2009-06-03
  • ASHTECH Z18 - 0065 2005-09-12
  • ASHTECH Z18 - 0065 2001-05-08
  • Antenna - Radome
  • TRM57971.00 - NONE 2012-01-24
  • TRM55971.00 - NONE 2009-10-15
  • AERAT2775_43 - SPKE 2008-07-15

Daily RINEX2 Observations

RINEX2 Cycle Slips

RINEX2 RMS Multipath

RINEX2 Latency

Residuals

The residual plots show the differences between weekly station position estimates (from the weekly IGS combined solutions) and the latest IGS cumulative solution piecewise linear [+post-seismic deformation] model. For more information on the IGS cumulative solution please see: https://webigs.ign.fr/tfcc/en/solution/cumulative
