Overview
- Country/Region Braunschweig, Germany
- Latitude, Longitude 52.296, 10.460
- Elevation 130.2 m
Station Information - PTBB00DEU
- Receiver - Firmware SEPT POLARX5TR - 5.4.0

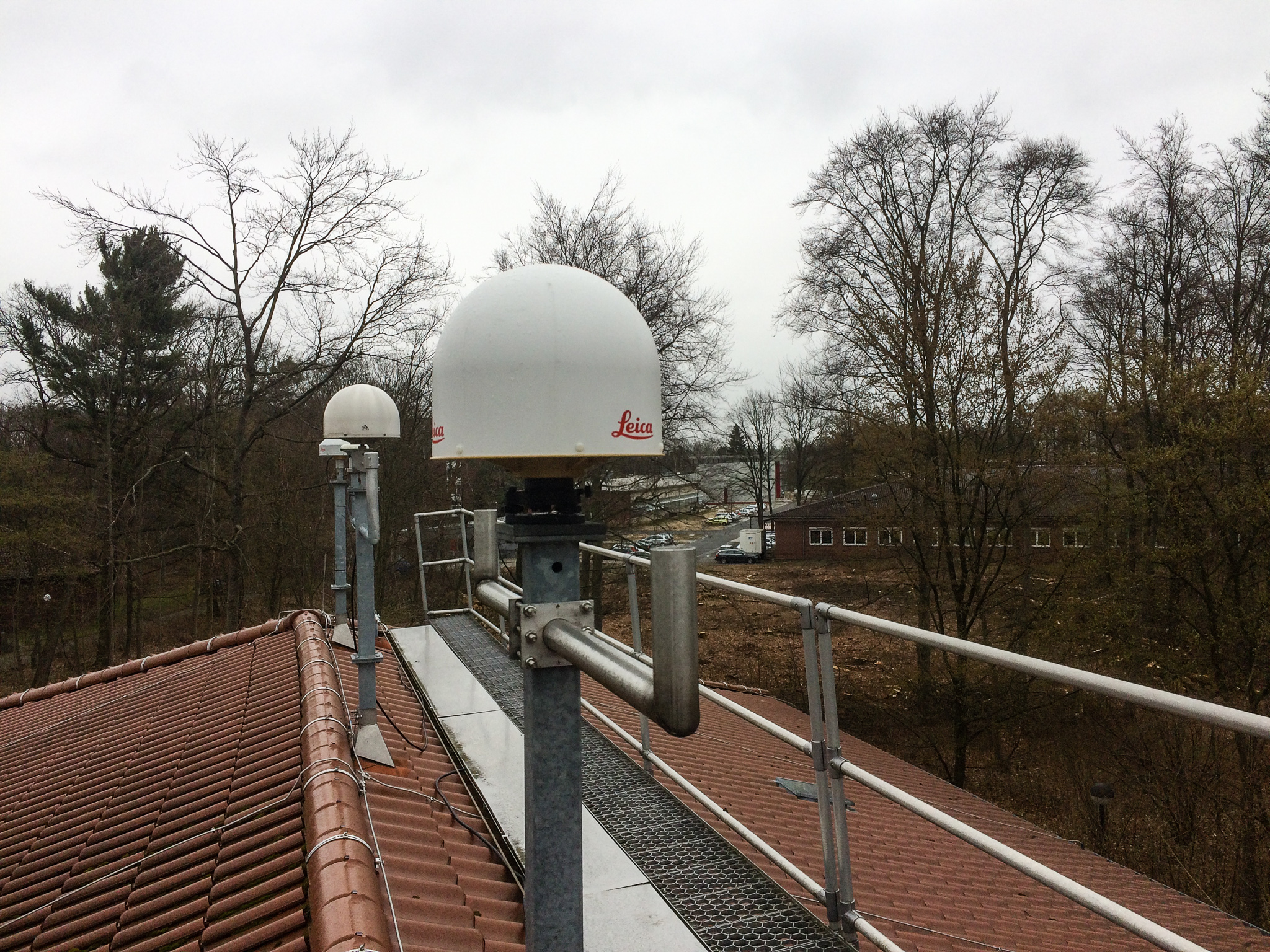

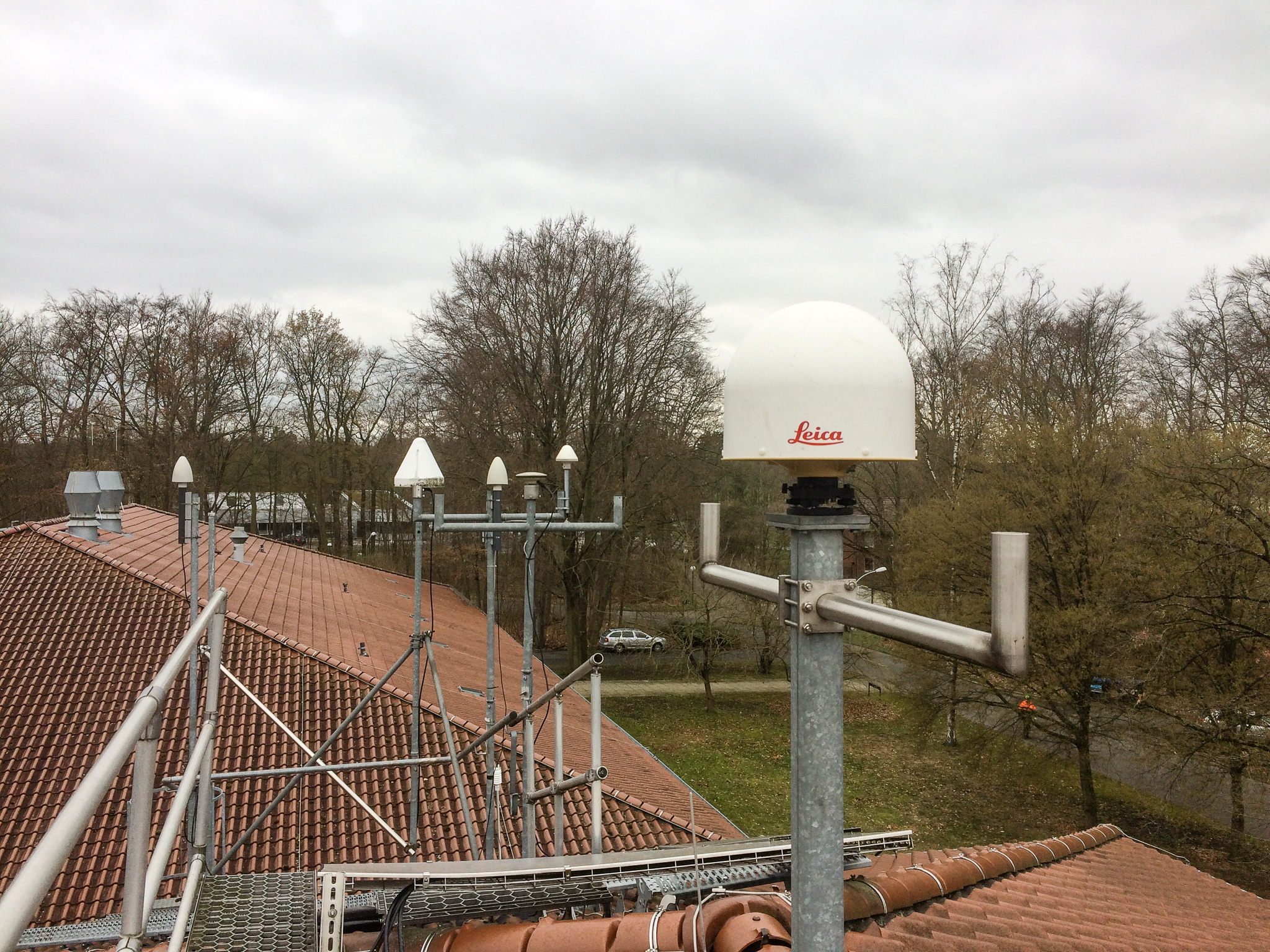

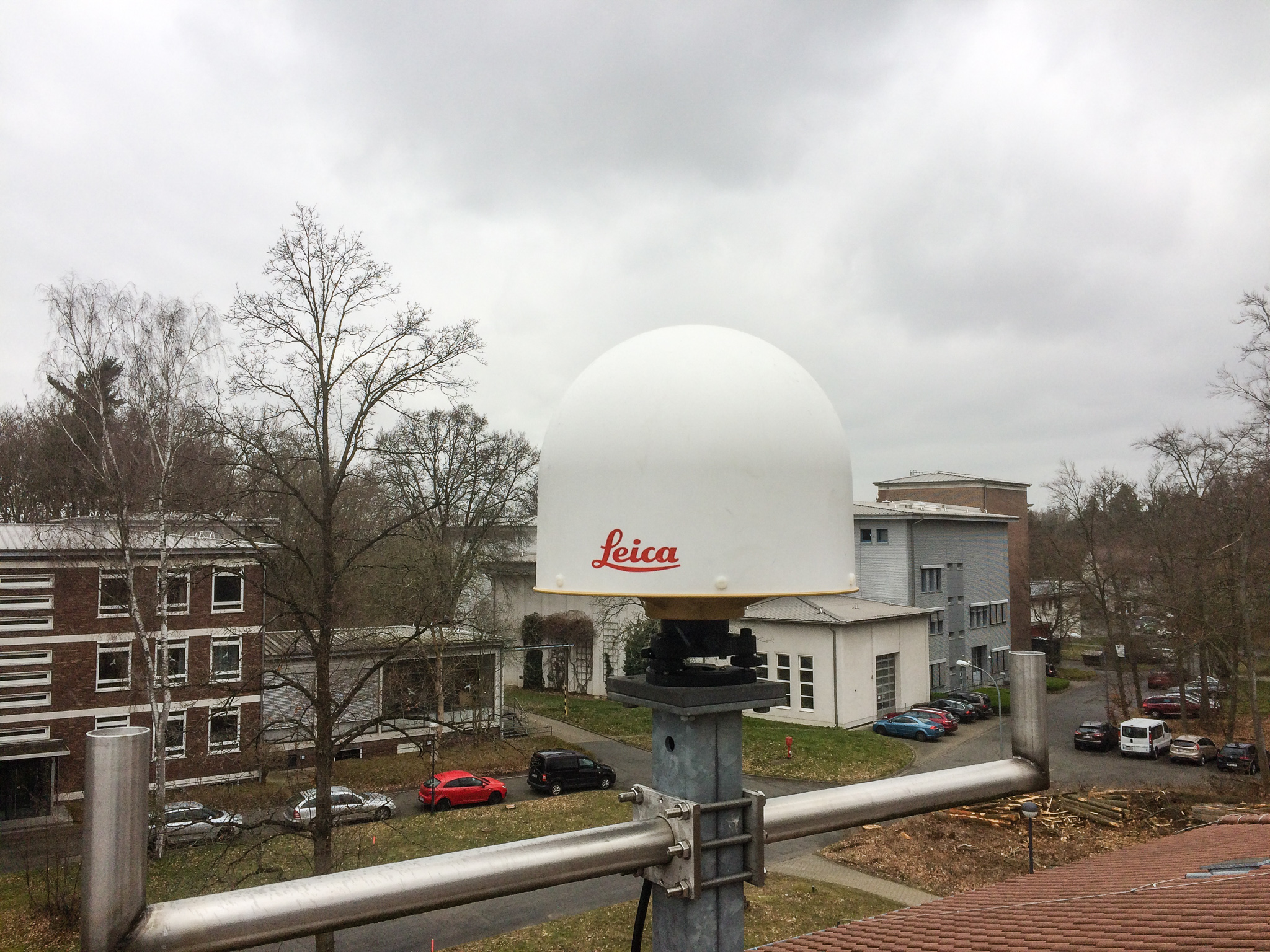

- Antenna - Radome LEIAR25.R4 - LEIT
- Antenna Calibration ROBOT
- Clock EXTERNAL ACTIVE H-MASER
- Last RINEX Data - Primary Data Center 2023-05-28 (v3) - BKG
- Constellation - RINEX GPS+GLO+GAL+BDS+IRNSS+SBAS
- Constellation - RealTime GPS+GLO+GAL
- DOMES Number 14234M001
- Nearby Tide Gauge N/A
- Station Log ptbb00deu_20220905.log
-
Analysis Center Usage
FinalRapidUltra
COD 2022-11-26 EMR 2022-11-26 ESA 2022-11-26 GFZ 2022-11-19 GRG 2023-03-13 2023-03-13 JPL 2023-03-27 NGS 2023-05-16 2023-05-30 SIO 2023-05-16 USN 2022-01-29 WHU 2023-05-30
Receiver & Antenna Changes
- Receiver - Firmware
- SEPT POLARX5TR - 5.4.0 2021-02-02
- SEPT POLARX5TR - 5.3.2 2020-03-05
- SEPT POLARX5TR - 5.2.0 2019-03-26
- ASHTECH Z-XII3T - 1L01-1D04 2006-11-13
- SEPT POLARX2 - 2.6.0 2006-07-25
- ASHTECH Z-XII3T - 1L01-1D04 2003-04-29
- ASHTECH Z-XII3T - 1L01-1D04 2002-03-19
- ROGUE SNR-8000 - 3.2.32.9 2000-03-29
- Antenna - Radome
- LEIAR25.R4 - LEIT 2019-03-26
- ASH700936E - SNOW 2002-03-19
- AOAD/M_T - NONE 2000-03-29
Email Advisories
- Operator.Gref at PTBB00DEU: stopping submission of rinex 22022/03/09
- Hessels PTBB00DEU: Firmware update2021/02/02
- Uwe Hessels PTBB: Firmware update2020/03/05
- Uwe Hessels PTBB: receiver replaced2019/03/28
- Uwe Hessels PTBB: Planned outage2019/03/22
- David Maggert PTBB data gap2016/10/11
- Rudolf Stöge PTBB Submission of the missing daily data file DOY 084, Data files from DOY 084 06:00 UTC until DOY 082016/03/29
- Rudolf Stöge BUCU, CONT, CONZ, HOFN, ISTA, LHAZ, NICO, ORID, PTBB, REYK, SOFI, WTZA, WTZR, WTZS, WTZZ, ZECK Resubm2014/06/17
- Rudolf Stöge PTBB Submission of the missing daily data file DOY 0462013/02/18
- Rudolf Stöge PTBB: Maser frequency-offset DOY 017 from about 15:50 UTC until about 17:40 UTC2013/01/18
- Rudi Stöger PTBB Submission of the missing daily data file DOY 1392012/05/22
- Rudi Stöger PTBB Submission of the missing daily data file DOY 3512010/12/27
- Rudi Stöger PTBB 2010/09/29
- Rudi Stöger ANKR, BUCU, CONT, , CONZ, HOFN, ISTA, LHAZ, NICO, OHI2, OHI3, , ORID, PTBB, REYK, SOFI, WTZA, WTZR, W2010/08/19
- Rudi Stöger PTBB External frequency changed to active H-Maser2010/02/02
- Rudi Stöger PTBB Resubmission of the daily data file DOY 3292009/11/26
- Rudi Stöger PTBB Receiver replaced2006/11/16
- Rudi Stöger PTBB Resubmission of daily data files days 317, 318 and 3192006/11/16
- Rudi Stöger PTBB Weak performance of UTC (PTB), caused by CS22006/04/24
- Rudi Stöger PTBB Another external frequency standard since 2003-10-022003/11/05
- Rudi Stöger PTBB Pressure Sensor was moved2003/10/01
- Rudi Stöger PTBB Smoothing deactivated since 2003-04-29.2003/06/20
- Rudi Stöger PTBB data available again2002/08/01
- Rudi Stöger PTBB data from day 204 until day 2122002/07/24
- Rudi Stöger PTBB data from day 204 until day 2122002/07/24
- Rudi Stöger PTBB days 082 - 0862002/03/28
- Rudi Stöger PTBB days 083, 084 and 0852002/03/28
- Rudi Stöger PTBB day 0782002/03/21
- Rudi Stöger Ashtech Model Z-12 Metronome in PTBB 2002/03/19
The residual plots show the differences between weekly station position estimates (from the weekly IGS combined solutions) and the latest IGS cumulative solution piecewise linear [+post-seismic deformation] model. For more information on the IGS cumulative solution please see: https://webigs.ign.fr/tfcc/en/solution/cumulative
The position time series are extracted from the daily IGS SINEX solutions.
