Overview

  • Country/Region Vila do Porto, Portugal
  • Latitude, Longitude 36.986, -25.126
  • Elevation 297.9 m

Station Information - RAEG00PRT

  • Receiver - Firmware LEICA GR50 - 4.61/7.811

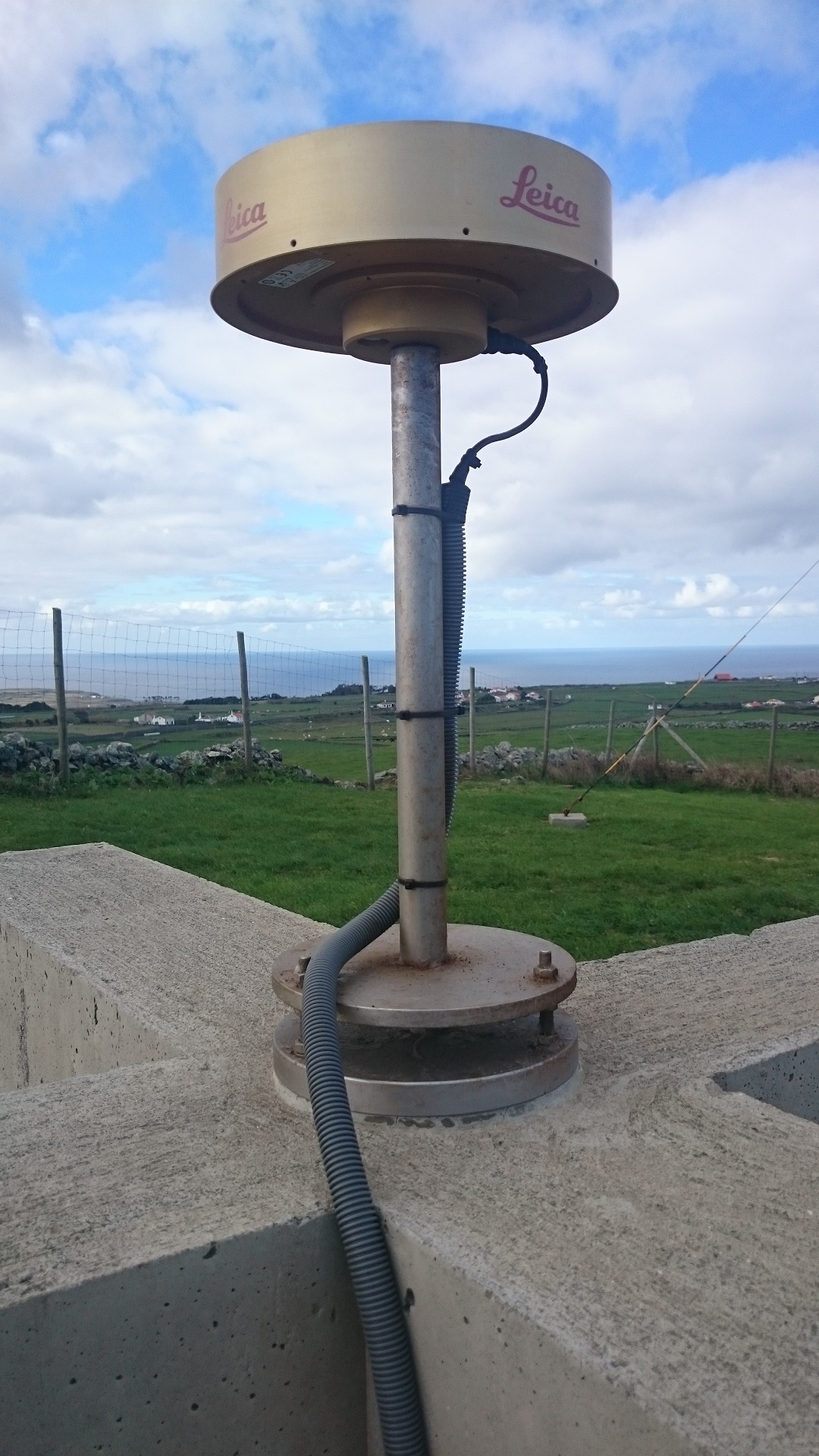

  • Antenna - Radome LEIAR20 - NONE
  • Antenna Calibration ROBOT
  • Clock EXTERNAL H-MASER
  • Last RINEX Data - Primary Data Center 2022-12-02 (v3) - BKG
  • Constellation - RINEX GPS+GLO+GAL+BDS
  • Constellation - RealTime GPS+GLO+GAL
  • DOMES Number 31912M003
  • Nearby Tide Gauge N/A
  • Station Log raeg00prt_20221123.log
  • Analysis Center Usage

    Final
    Rapid
    Ultra
    COD2022-10-01
    EMR2022-11-26
    JPL2022-11-192022-12-03
    MIT2022-11-26
    SIO2022-12-03

Receiver & Antenna Changes

  • Receiver - Firmware
  • LEICA GR50 - 4.61/7.811 2022-11-23
  • LEICA GR50 - 4.52/7.711 2022-03-21
  • LEICA GR25 - 3.11/6.713 2021-04-07
  • LEICA GR25 - 3.11/6.524 2020-11-17
  • LEICA GR25 - 3.11.1639/6.524 2020-03-25
  • LEICA GR25 - 3.11/6.403 2015-05-15
  • Antenna - Radome
  • LEIAR20 - NONE 2015-05-15

Email Advisories

The residual plots show the differences between weekly station position estimates (from the weekly IGS combined solutions) and the latest IGS cumulative solution piecewise linear [+post-seismic deformation] model. For more information on the IGS cumulative solution please see: https://webigs.ign.fr/tfcc/en/solution/cumulative

The position time series are extracted from the daily IGS SINEX solutions.
