Overview

  • Country/Region Toulouse, France
  • Latitude, Longitude 43.561, 1.481
  • Elevation 207.2 m

Station Information - TLSE00FRA

  • Receiver - Firmware TRIMBLE ALLOY - 6.16

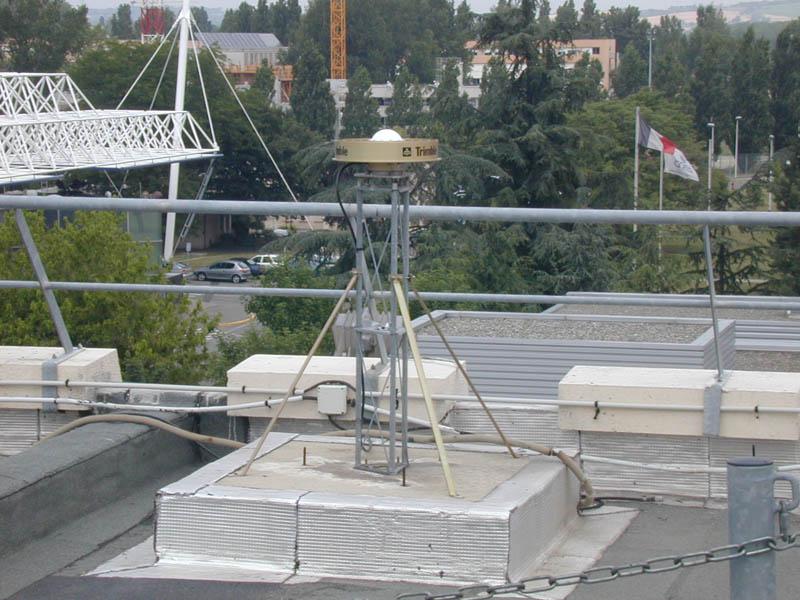

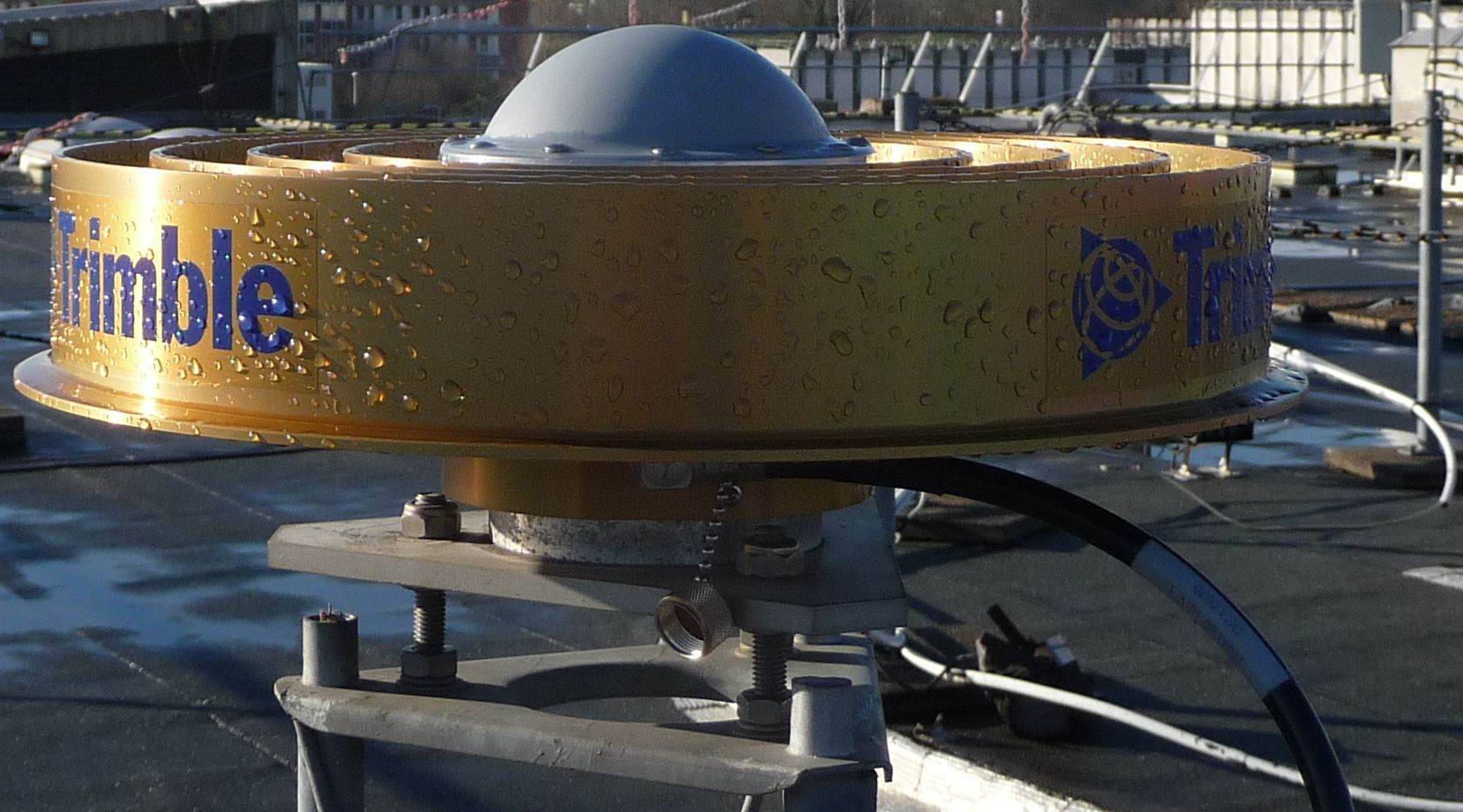

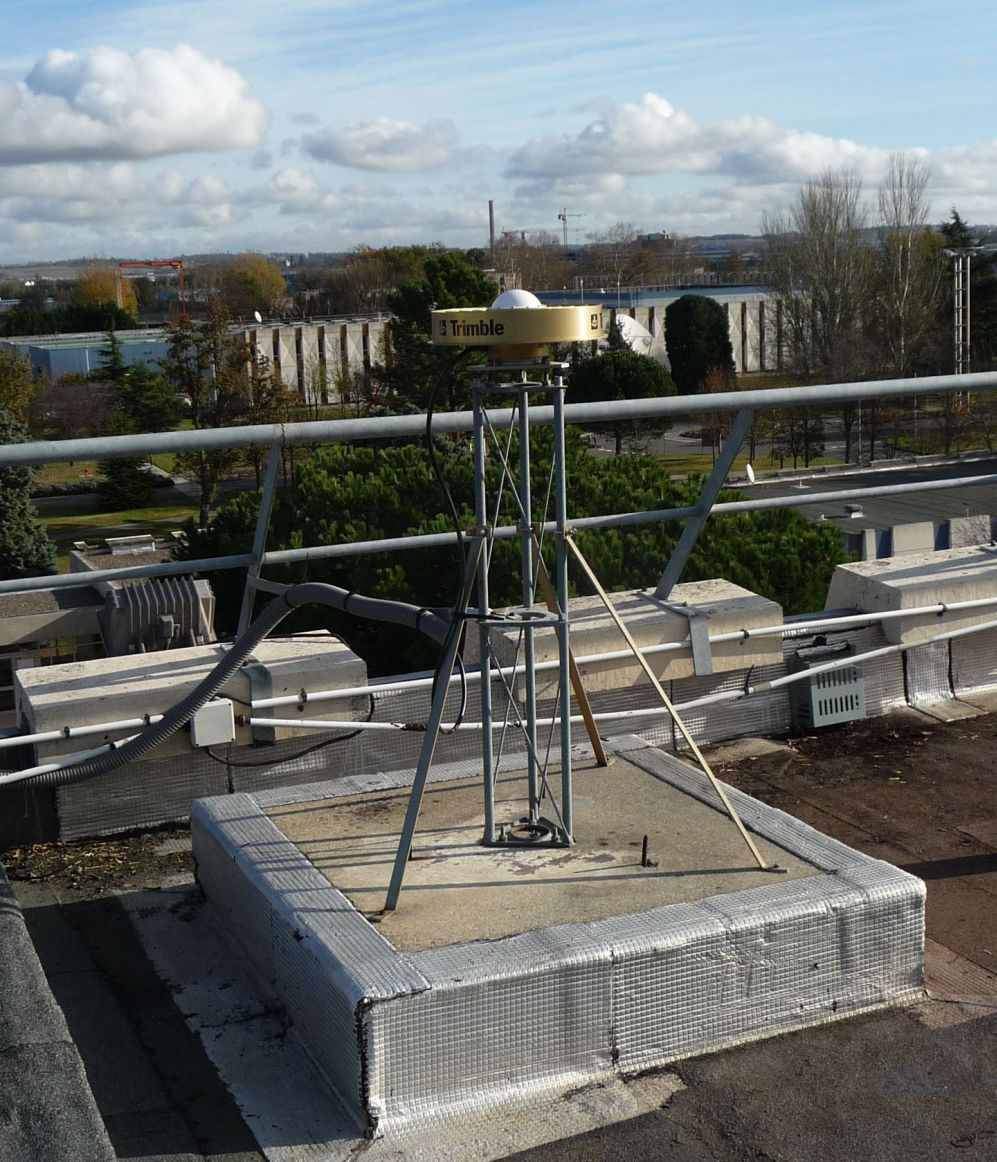

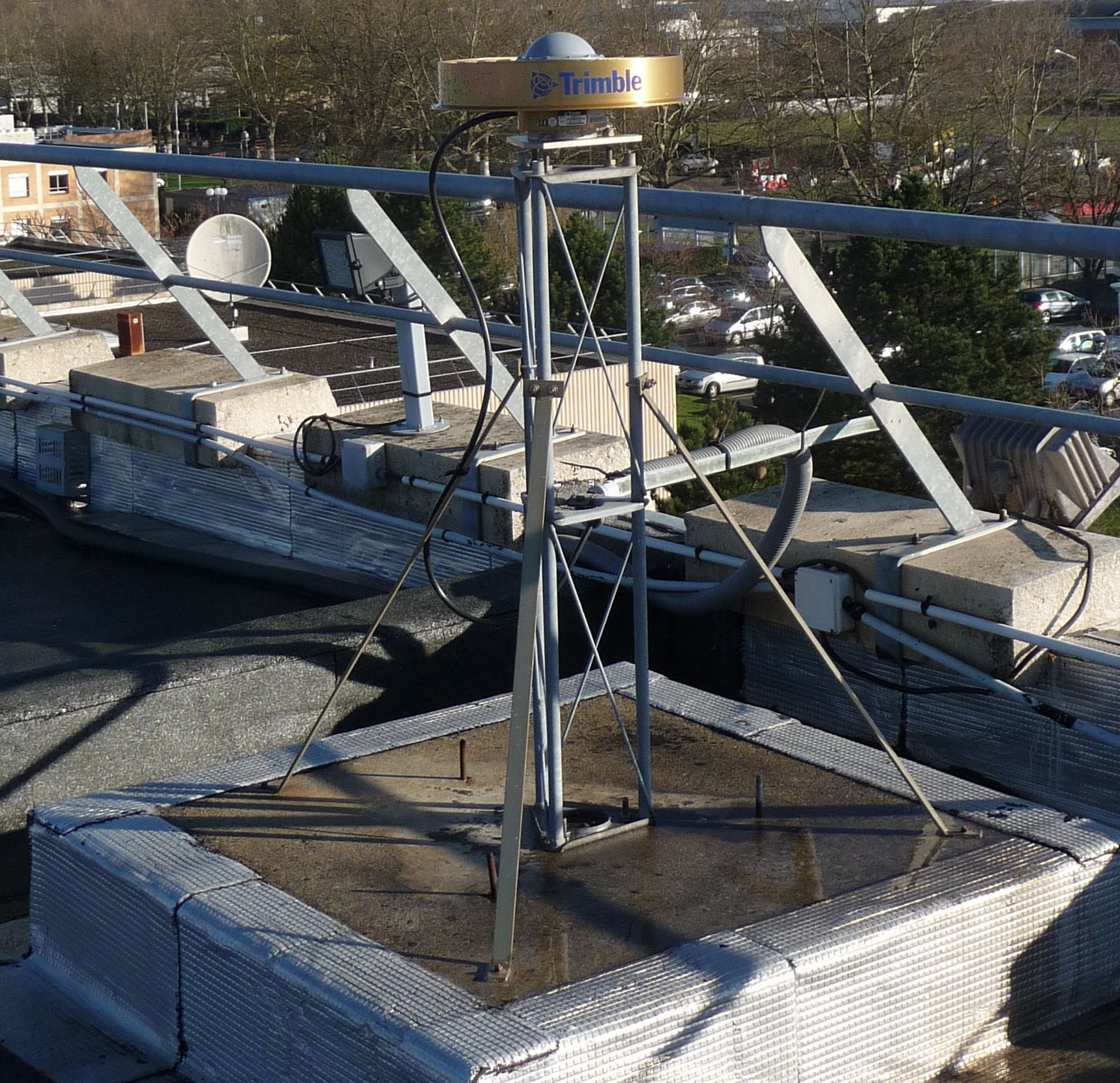

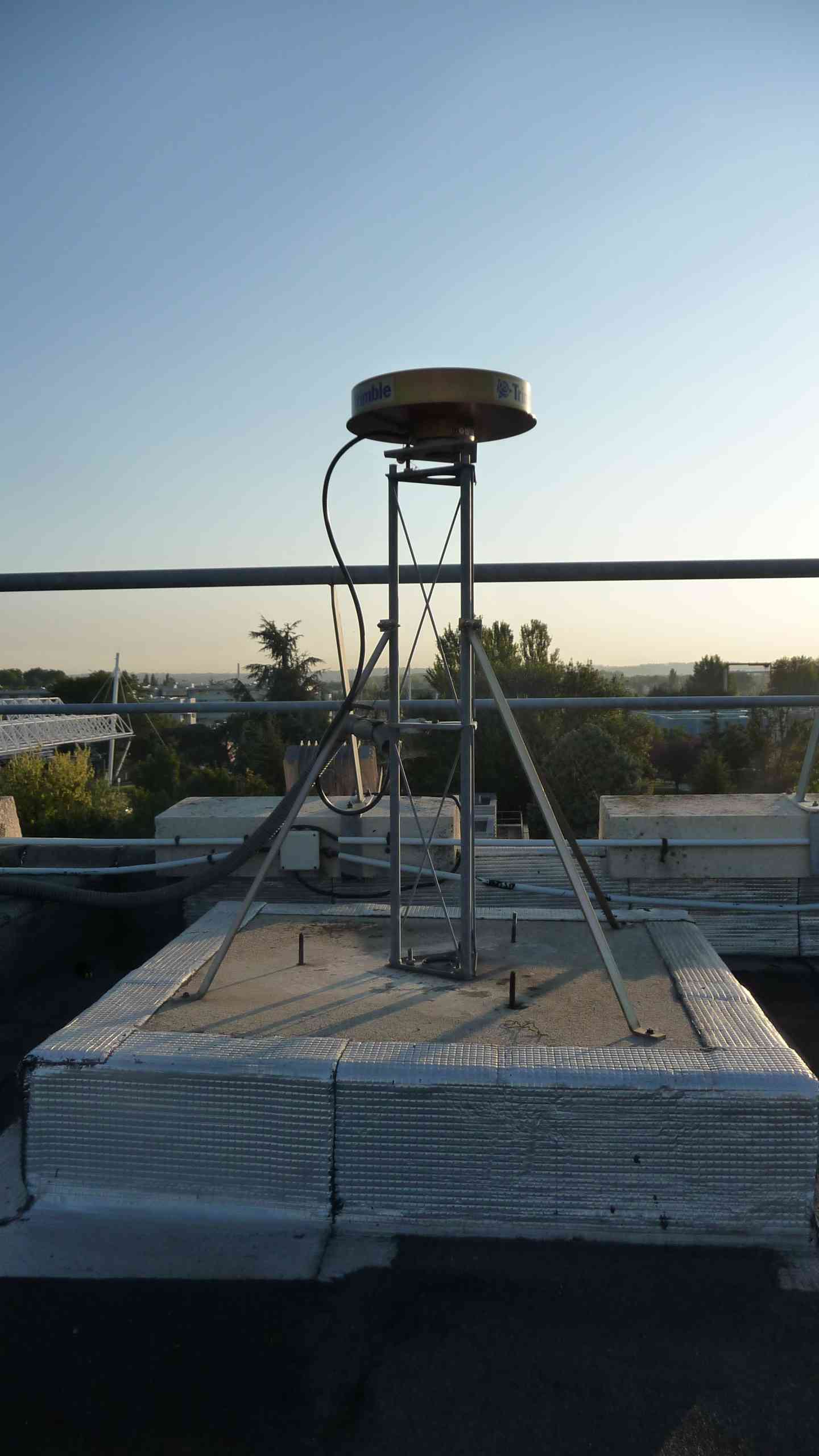

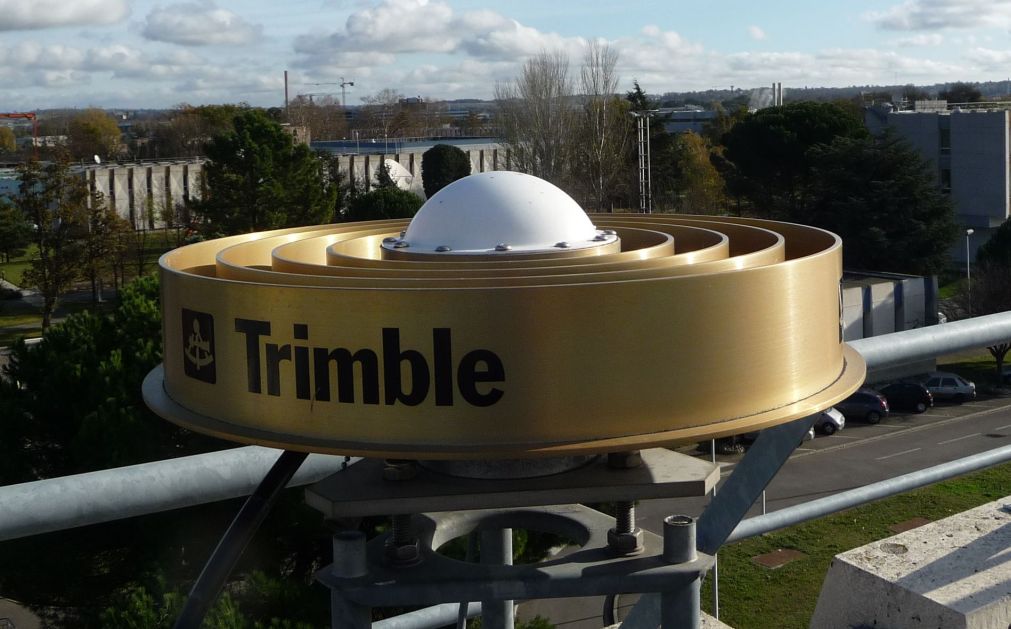

  • Antenna - Radome TRM59800.00 - NONE
  • Antenna Calibration ROBOT
  • Clock INTERNAL
  • Last RINEX Data - Primary Data Center 2023-03-29 (v3) - IGN
  • Constellation - RINEX GPS+GLO+GAL+BDS+SBAS+IRNSS
  • Constellation - RealTime GPS+GLO+GAL

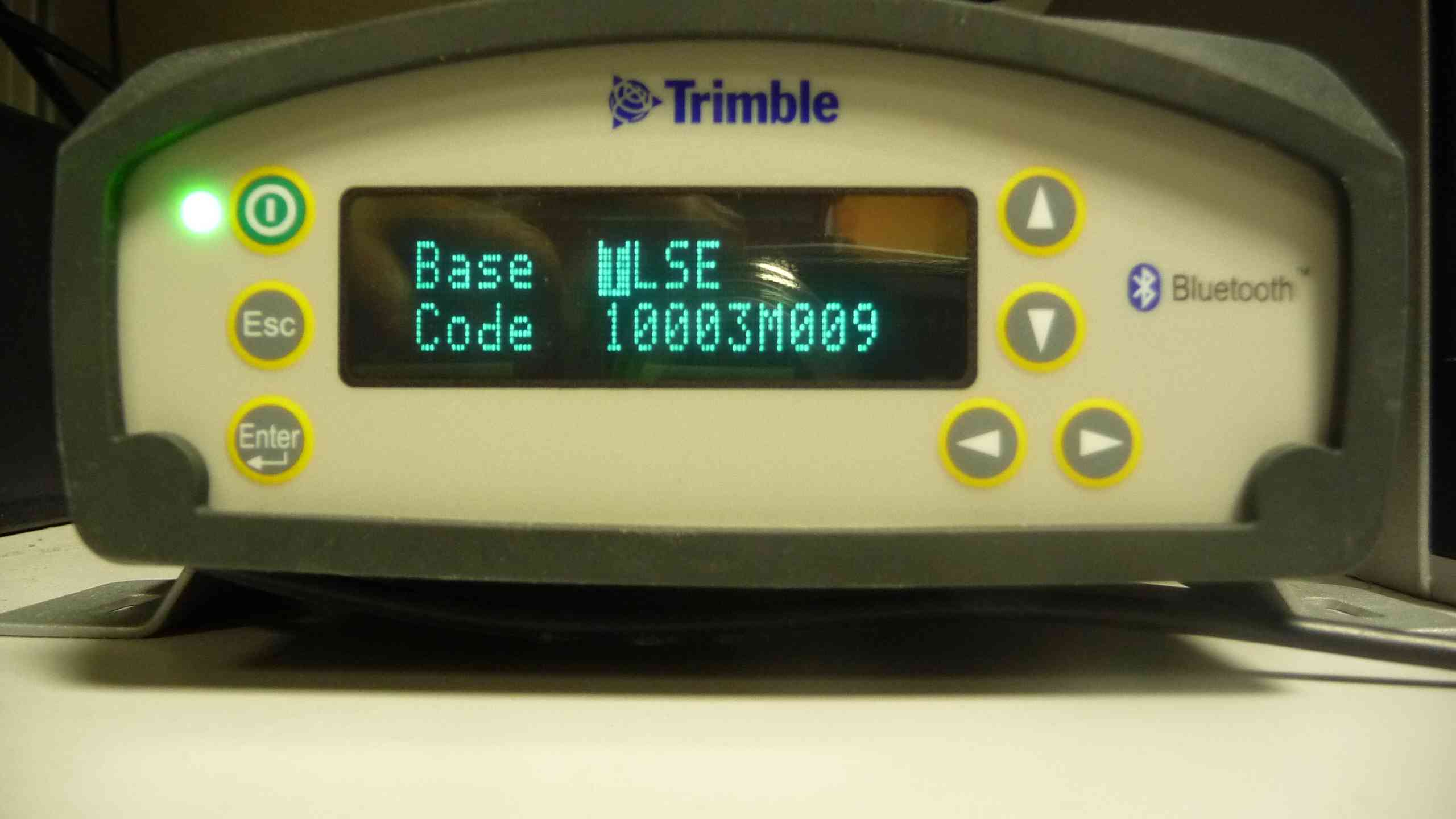

  • DOMES Number 10003M009
  • Nearby Tide Gauge N/A
  • Station Log tlse00fra_20230309.log
  • Analysis Center Usage

    Final
    Rapid
    Ultra
    COD2022-11-26
    EMR2023-03-30
    ESA2022-11-26
    GFZ2022-11-19
    GRG2023-02-132023-02-13
    JPL2022-11-05
    MIT2022-11-26
    NGS2023-03-162023-03-30
    SIO2023-03-16
    USN2022-03-26

Receiver & Antenna Changes

  • Receiver - Firmware
  • TRIMBLE ALLOY - 6.16 2023-03-09
  • TRIMBLE ALLOY - 6.14 2022-09-21
  • TRIMBLE NETR9 - 5.45 2020-05-18
  • TRIMBLE NETR9 - 5.43 2020-02-20
  • TRIMBLE NETR9 - 5.42 2019-10-24
  • TRIMBLE NETR9 - 5.37 2019-01-30
  • TRIMBLE NETR9 - 5.33 2018-07-27
  • TRIMBLE NETR9 - 5.30 2018-02-19
  • TRIMBLE NETR9 - 5.22 2017-06-15
  • TRIMBLE NETR9 - 5.22 2017-05-23
  • TRIMBLE NETR9 - 5.15 2016-12-12
  • TRIMBLE NETR9 - 5.14 2016-08-11
  • TRIMBLE NETR9 - 5.01 2015-10-07
  • TRIMBLE NETR9 - 5.01 2015-06-19
  • TRIMBLE NETR9 - 4.85 2014-06-06
  • TRIMBLE NETR9 - 4.60 2012-06-08
  • TRIMBLE NETR9 - 4.42 2011-10-05
  • TRIMBLE NETR9 - 4.22 2011-04-18

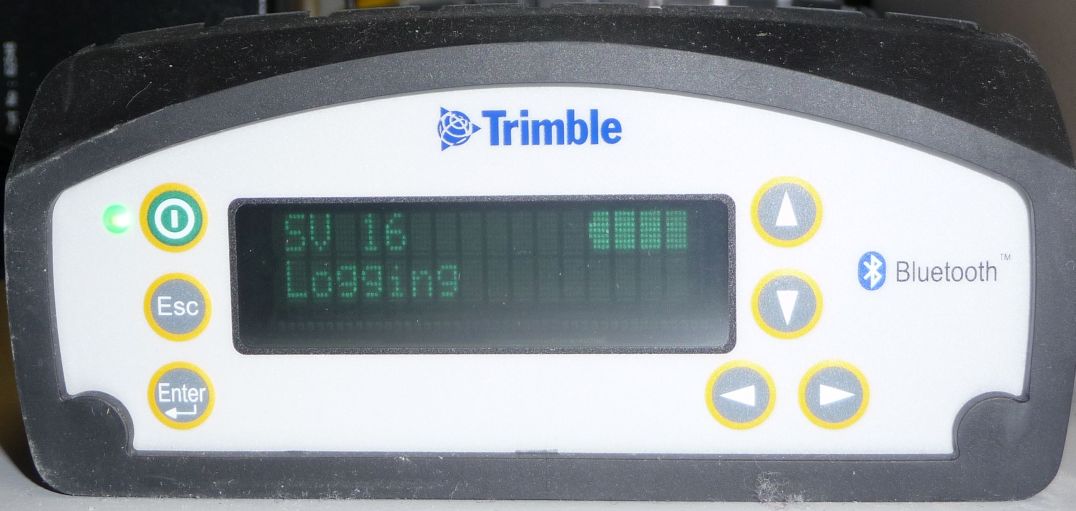

  • TRIMBLE NETR5 - 4.17 2010-10-12
  • TRIMBLE NETR5 - 4.03 2010-03-23
  • TRIMBLE NETR5 - 4.03 2009-12-10

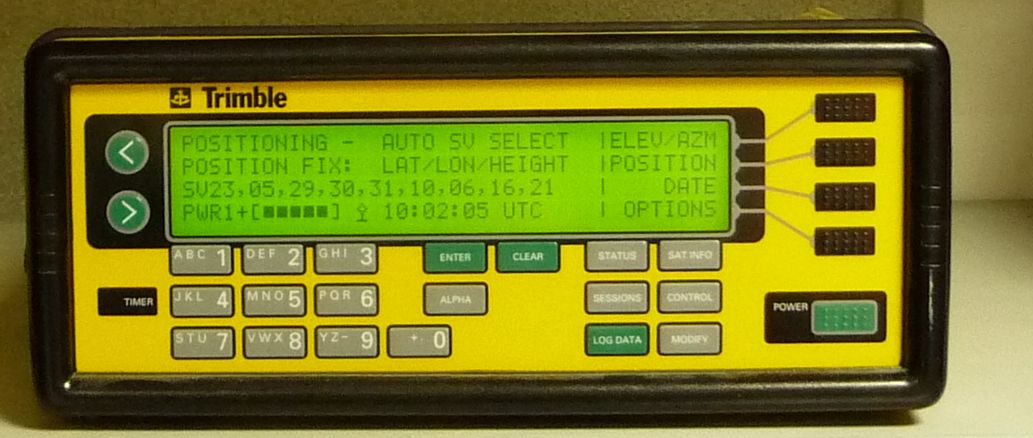

  • TRIMBLE 4000SSI - 7.32 2007-09-05
  • TRIMBLE 4000SSI - 7.32 2005-01-20
  • TRIMBLE 4000SSI - 7.19A 2003-12-11
  • TRIMBLE 4000SSI - 7.19A 2003-09-15
  • ROGUE SNR-12 RM - 3.2.32.11 2002-05-02
  • ROGUE SNR-12 RM - 3.2.32.9 2001-01-04
  • Antenna - Radome
  • TRM59800.00 - NONE 2016-03-21
  • TRM59800.00 - NONE 2016-03-11
  • TRM59800.00 - NONE 2013-02-14
  • TRM59800.00 - NONE 2012-09-04
  • TRM59800.00 - NONE 2010-02-24
  • TRM29659.00 - NONE 2009-12-10
  • TRM29659.00 - NONE 2003-12-01
  • AOAD/M_T - NONE 2003-09-15
  • AOAD/M_T - NONE 2001-01-04

Email Advisories

The residual plots show the differences between weekly station position estimates (from the weekly IGS combined solutions) and the latest IGS cumulative solution piecewise linear [+post-seismic deformation] model. For more information on the IGS cumulative solution please see: https://webigs.ign.fr/tfcc/en/solution/cumulative

The position time series are extracted from the daily IGS SINEX solutions.
