Overview

  • Receiver - Firmware SEPT POLARX5TR - 5.4.0
  • Receiver SN 16283014248
  • Antenna - Radome TRM59800.00 - NONE
  • Calibration ROBOT
  • Clock EXTERNAL CESIUM
  • Last Data Available 2021-10-25 (v3)
  • DOMES Number 10003M034
  • Constellation GPS+GLO+GAL+BDS+SBAS+IRNSS
  • Data Center IGN
  • Nearby Tide Gauge N/A
  • Station Log tlsg00fra_20210126.log
  • Location Toulouse, France
  • Latitude, Longitude 43.550, 1.485
  • Elevation 208.743 m

Email Advisories

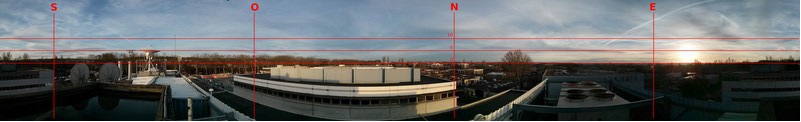

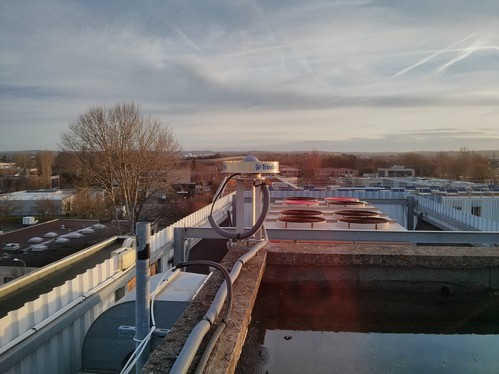

Photos

Receiver & Antenna Changes

  • Receiver - Firmware
  • SEPT POLARX5TR - 5.4.0 2021-01-26
  • SEPT POLARX5TR - 5.3.2 2020-02-04
  • SEPT POLARX5TR - 5.3.0 2019-09-25
  • SEPT POLARX5TR - 5.2.0 2018-05-17
  • SEPT POLARX5TR - 5.1.2 2017-09-26
  • SEPT POLARX4TR - 2.9.6 2016-12-07
  • SEPT POLARX4TR - 2.9.5 2016-10-13
  • SEPT POLARX4TR - 2.9.4 2016-07-04
  • SEPT POLARX4TR - 2.9.0 2015-10-21
  • SEPT POLARX4TR - 2.9.0 2015-06-08
  • SEPT POLARX4TR - 2.5.2 2014-02-12
  • Antenna - Radome
  • TRM57971.00 - NONE 2012-01-24
  • TRM55971.00 - NONE 2009-10-15
  • AERAT2775_43 - SPKE 2008-07-15

Daily RINEX2 Observations

RINEX2 Cycle Slips

RINEX2 RMS Multipath

RINEX2 Latency

Residuals

The residual plots show the differences between weekly station position estimates (from the weekly IGS combined solutions) and the latest IGS cumulative solution piecewise linear [+post-seismic deformation] model. For more information on the IGS cumulative solution please see: https://webigs.ign.fr/tfcc/en/solution/cumulative
