Overview

  • Receiver - Firmware TRIMBLE NETR9 - 5.45
  • Receiver SN 5429R49173
  • Antenna - Radome TRM59800.00 - NONE
  • Calibration ROBOT
  • Clock INTERNAL
  • Last Data Available 2021-10-25 (v3)
  • DOMES Number 14001M008
  • Constellation GPS+GLO+GAL+BDS
  • Data Center BKG
  • Nearby Tide Gauge N/A
  • Station Log zim200che_20200608.log
  • Location Zimmerwald, Switzerland
  • Latitude, Longitude 46.877, 7.465
  • Elevation 956.5 m

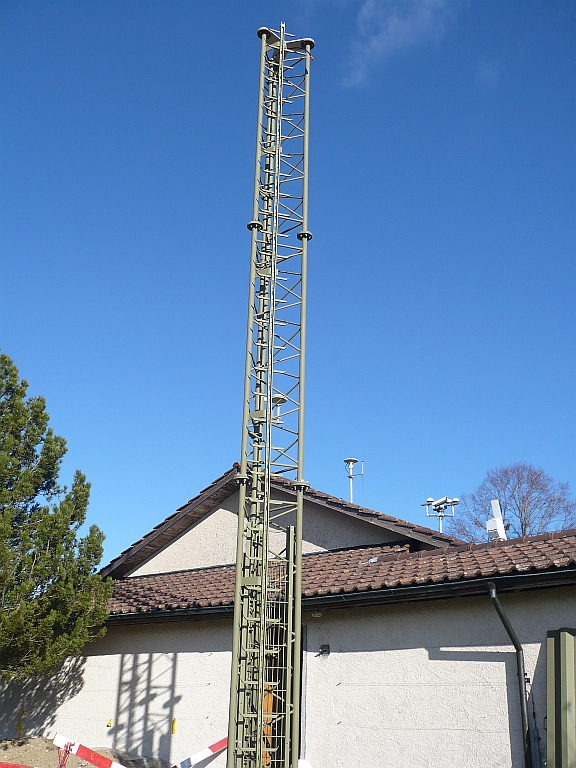

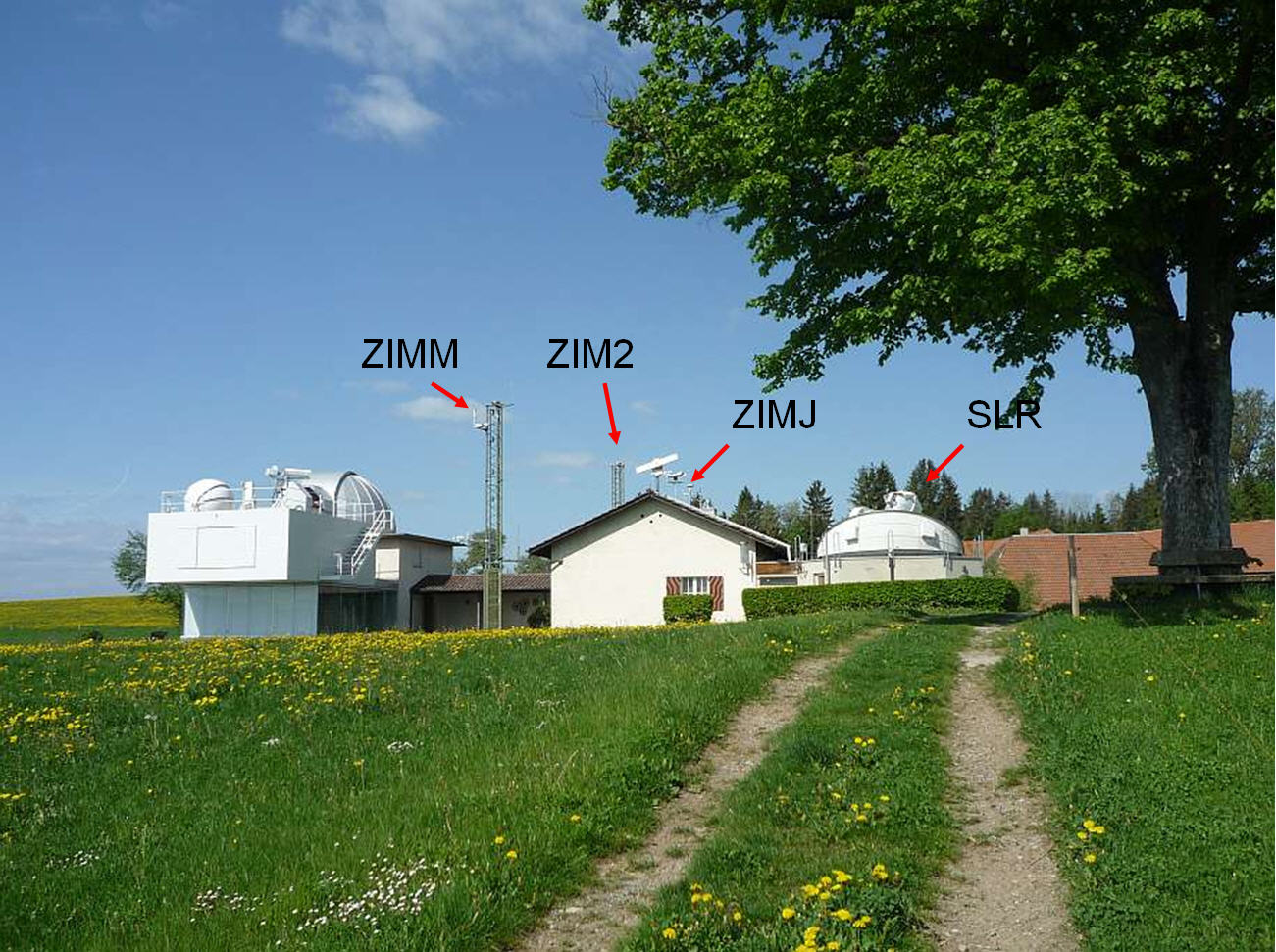

Photos

Receiver & Antenna Changes

  • Receiver - Firmware
  • TRIMBLE NETR9 - 5.45 2020-06-08
  • TRIMBLE NETR9 - 5.37 2018-12-18
  • TRIMBLE NETR9 - 5.22 2017-04-11
  • TRIMBLE NETR9 - 5.20 2017-02-06
  • TRIMBLE NETR9 - 5.10 2015-12-16
  • TRIMBLE NETR9 - 5.03 2015-08-13
  • TRIMBLE NETR9 - 5.01 2015-06-19
  • TRIMBLE NETR9 - 4.85 2015-04-27
  • TRIMBLE NETR5 - 4.85 2014-05-05
  • TRIMBLE NETR5 - 4.48 2012-04-30
  • TRIMBLE NETR5 - 4.43 2011-11-22
  • TRIMBLE NETR5 - 4.19 2011-02-23
  • TRIMBLE NETR5 - 4.14 2010-08-05
  • TRIMBLE NETR5 - Nav 4.03 / Boot 3 2009-06-24
  • TRIMBLE NETR5 - Nav 3.64 / Boot 3 2008-12-05
  • TRIMBLE NETR5 - Nav 3.50 / Boot 3 2008-02-07
  • TRIMBLE NETR5 - Nav 3.20 / Boot 3 2007-11-08
  • Antenna - Radome
  • TRM57971.00 - NONE 2012-01-24
  • TRM55971.00 - NONE 2009-10-15
  • AERAT2775_43 - SPKE 2008-07-15

Daily RINEX2 Observations

RINEX2 Cycle Slips

RINEX2 RMS Multipath

RINEX2 Latency

Residuals

The residual plots show the differences between weekly station position estimates (from the weekly IGS combined solutions) and the latest IGS cumulative solution piecewise linear [+post-seismic deformation] model. For more information on the IGS cumulative solution please see: https://webigs.ign.fr/tfcc/en/solution/cumulative
